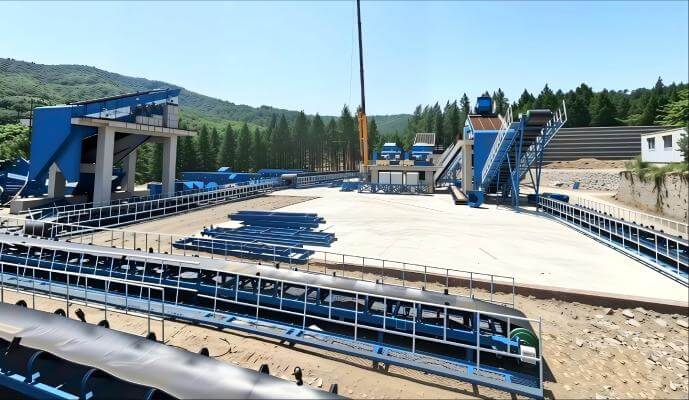

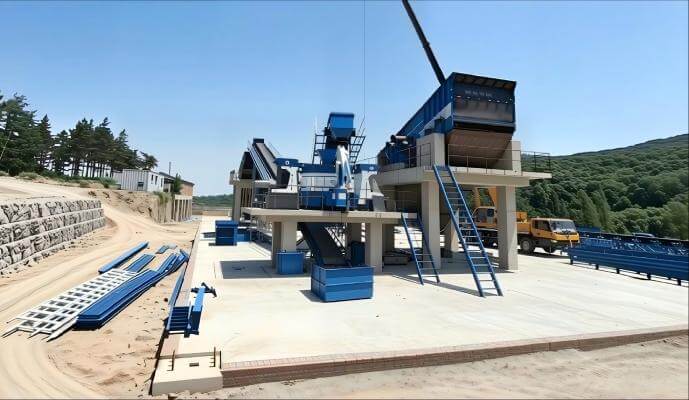

Nestled amidst the mountains of Liaodong in Qingyuan Manchu Autonomous County, a high-quality 800Tph sand and gravel crushing and sand-making production line.
This project was meticulously developed by the Changli Group and stands as a key initiative designed to empower the local aggregate industry and drive high-quality development in the mining sector.
Core equipment
Vibrating feeder + jaw crusher (feeding and crushing)
Run-of-mine ore is evenly fed by a (ZSW6015) feeder into a (C950X1250) jaw crusher for primary crushing. The vibrating feeder features a prescreening function that effectively removes soil and fines, thereby reducing the load on downstream crushing equipment. The jaw crusher utilizes an optimized deep-cavity design, delivering high crushing force and exceptional durability for stable operation.
HP400 Cone Crusher (Secondary/Tertiary Crushing)

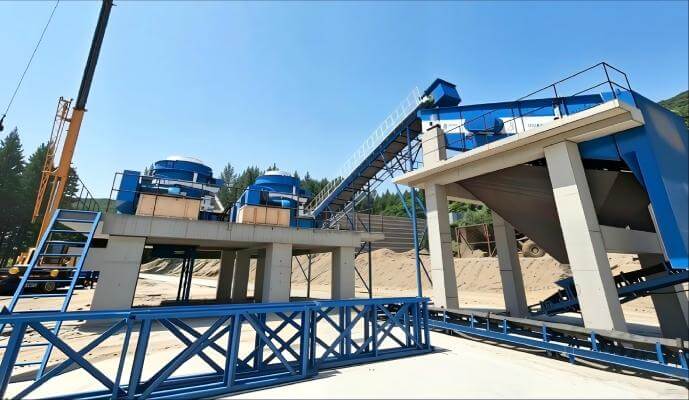

After primary crushing, the material undergoes soil removal and screening; the oversize material is then conveyed to two HP400 cone crushers for secondary and tertiary crushing. The HP series cone crusher utilizes the principle of inter-particle (lamination) crushing, featuring a high reduction ratio, high throughput, and excellent product shape; its hydraulic adjustment and tramp release systems facilitate convenient operation and maintenance.
New Style Sand-Making Machine TLS1563 (Sand Making and Shaping)
After crushing is complete, the stone material enters the Talos TLS1563 sand-making machine for sand making and shaping. Featuring a unique rotor structure and material-throwing design, this equipment simultaneously performs crushing, shaping, and sand-making operations; by adjusting the rotational speed and feeding method, it produces high-quality manufactured sand with optimal gradation and excellent particle shape.
Circular vibrating screen, sand washing machine, dewatering screen (screening and post-processing) The entire production line is equipped with 3YK3680 and 2YK3070 circular vibrating screens, ensuring high screening efficiency and precise, controllable product particle sizes. The manufactured sand undergoes washing, desliming, and dewatering using an XS3024 wheel-type sand washer and a TTS2050 dewatering screen, effectively reducing fines and silt content while enhancing sand quality. Additionally, the inclusion of a magnetic separator and an iron remover effectively eliminates ferrous impurities from the material, protecting downstream equipment and ensuring the purity of the final product.
Project Advantages
Tailor measures to specific circumstances and plan scientifically:
At the outset of the project, the expert team from Changli Group conducted extensive on-site surveys. By fully integrating the client’s site conditions and specific requirements, they skillfully matched high-performance main machinery with auxiliary equipment—thereby reducing investment costs while ensuring both production capacity and product quality.
Multi-stage crushing with seamless integration.
The production line employs a three-stage crushing process—comprising a jaw crusher, dual cone crushers, and a sand-making machine—integrated with comprehensive post-processing steps such as multi-stage screening, iron removal, magnetic separation, and washing; this ensures seamless coordination between stages and efficient material flow.
Simultaneous production of sand and gravel; wet processing boosts efficiency.
Through precise control of crushing and screening, the production line simultaneously yields high-quality manufactured sand and crushed stone of various specifications. Meanwhile, the wet processing method (washing and dewatering) effectively enhances the cleanliness and quality of the manufactured sand, meeting the requirements for high-standard construction sand and significantly boosting the project’s overall economic efficiency.
Conclusion
From primary feeding to finished product discharge, and from crushing and sand making to washing and dewatering, the entire production line—featuring a scientifically designed process flow and a comprehensive equipment configuration—achieves an optimal balance between maximizing resource utilization and maximizing economic returns. With over forty years of deep expertise in the crushing and grinding equipment sector, Changli Group remains steadfastly committed to a customer-centric approach, consistently delivering high-efficiency, reliable, and eco-friendly integrated solutions.
