Maximum Feeding Size: 55cm Processing capacity: 50-585t/h
VIDEOS

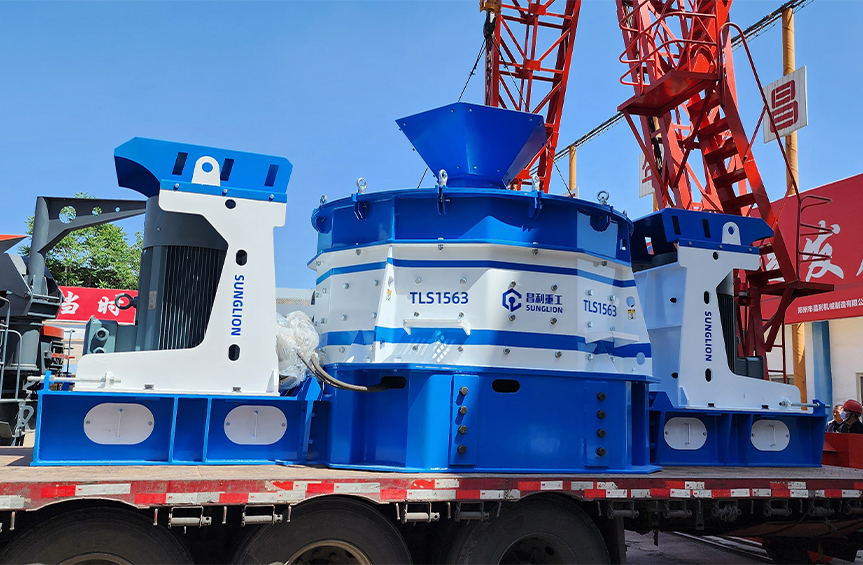

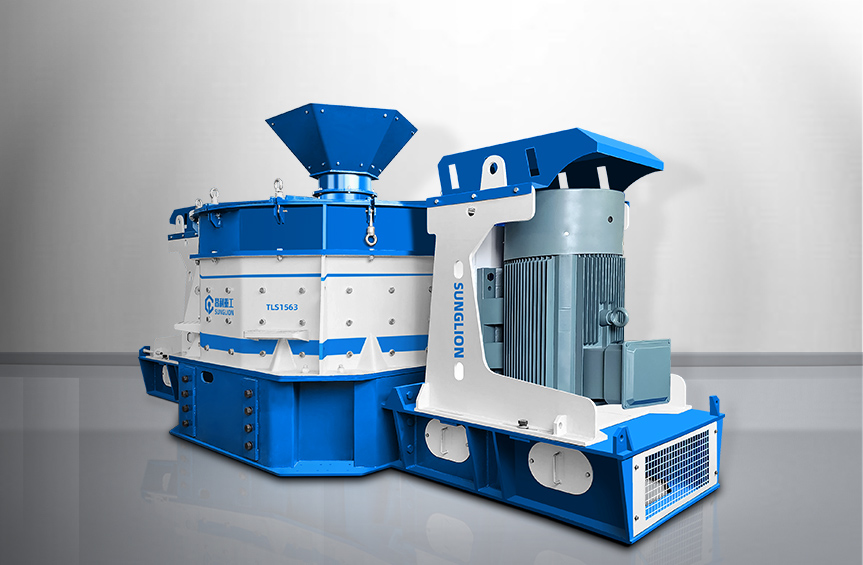

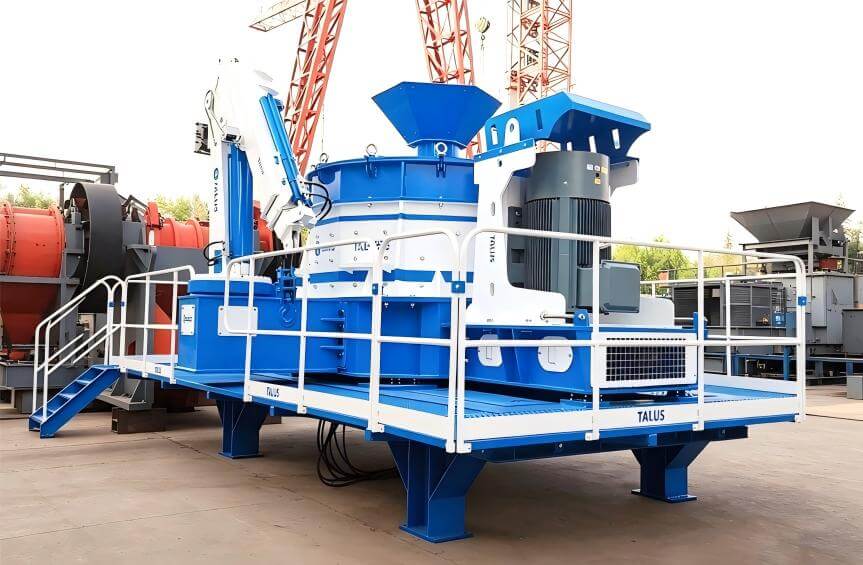

The new type of impact crusher is a new type of vertical shaft impact crusher. This equipment adopts world-leading design concepts, materials and technologies, and has stronger processing capacity, higher sand mold forming rate and lower maintenance costs. It is a new type of sand making and shaping equipment.
The optimized design of the central shaft module of the sand making machine adopts a specially designed dust-proof sealing structure, which has a stronger load-bearing capacity and solves the risk of main shaft breakage or shaft breakage that is prone to occur during overload operation of traditional sand making machines, thus ensuring higher stability and safety.

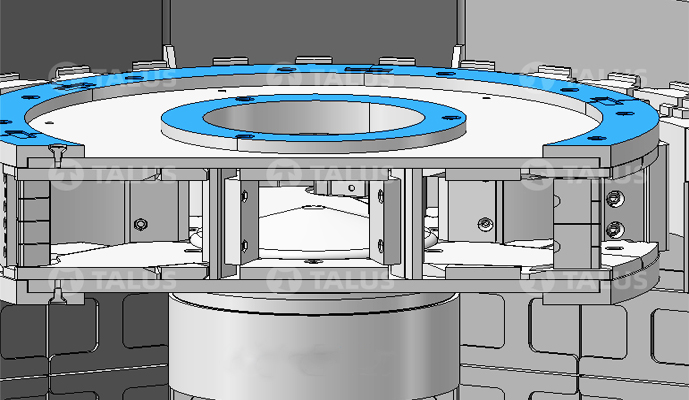

Wide rotor diameter and six channel throwing ports design

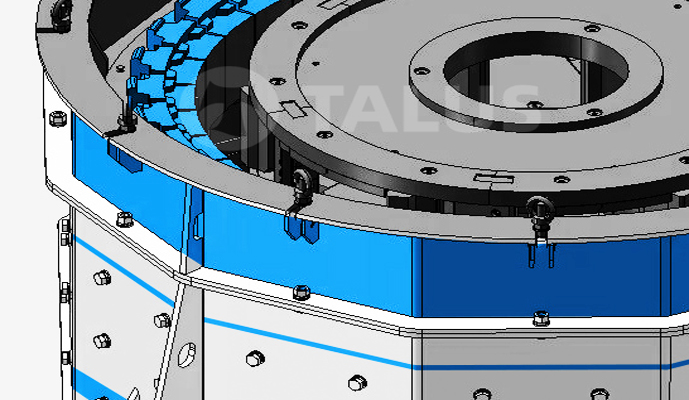

Double discharge ports design enables non clogging production

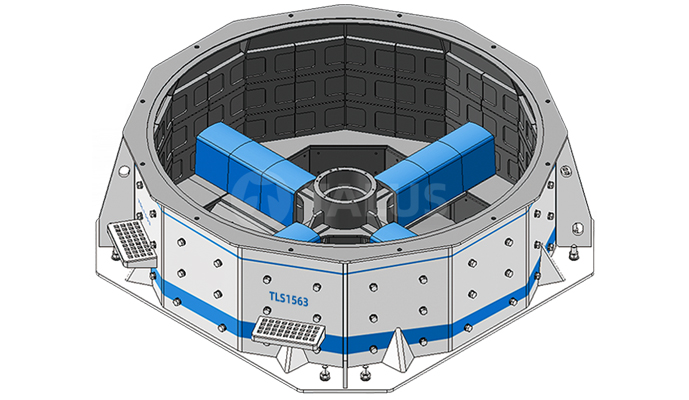

One crushing cavity can be equipped with two different modular rotors
|
Model |
Rotor diameter×height |
Circumferential Speed |
Drive power |
Throughput rate |
Max Feeding size |
|
(mm) |
(m/s) |
(kw) |
(t/h) |
(mm) |
|
|
TLS1563D |
1500×220 |
70~80 |
315+315 |
100~490 |
≤50 |
|
(Dual drive) |
|||||
|
TLS1563S |
1500×220 |
70~80 |
450 |
100~490 |
≤50 |
|
(single drive) |
|||||
|
TLS1040S |
1000×220 |
70~80 |
400 |
100~300 |
≤50 |
|
(single drive) |
