Semi-underground Stepped Sand Making Plant

Send E-mail Inquiry Now

Max.Feed Size: 60mm Equipment Output: 60-220(T/H)

BLURB

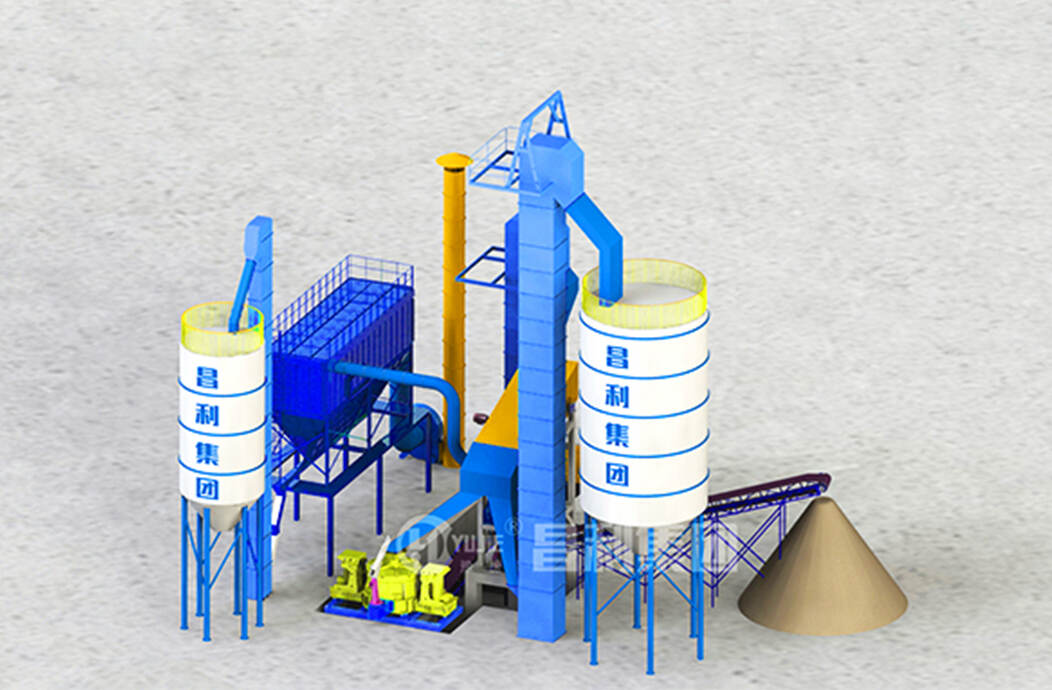

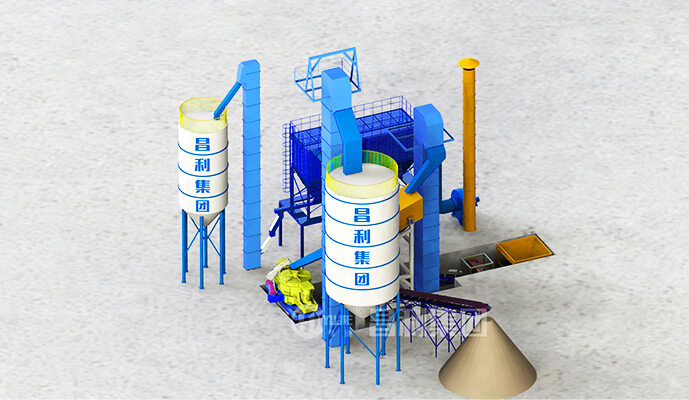

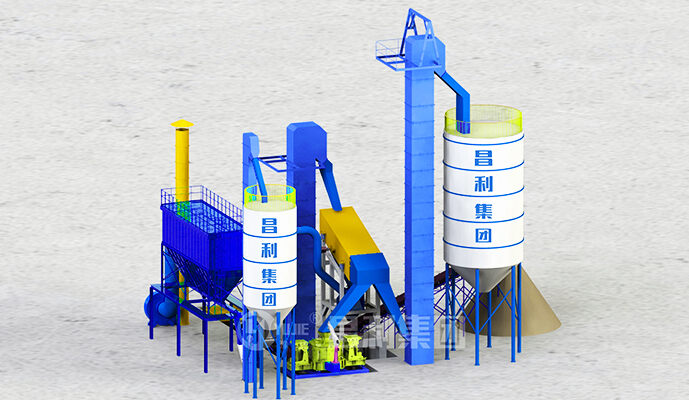

The STSL series semi-underground stepped sand making plant is a relatively simple sand making plant. It installs the feeding and conveying system and the crushing and sand making system underground, and uses an enclosure structure to enclose the surface equipment to reduce noise and dust pollution.

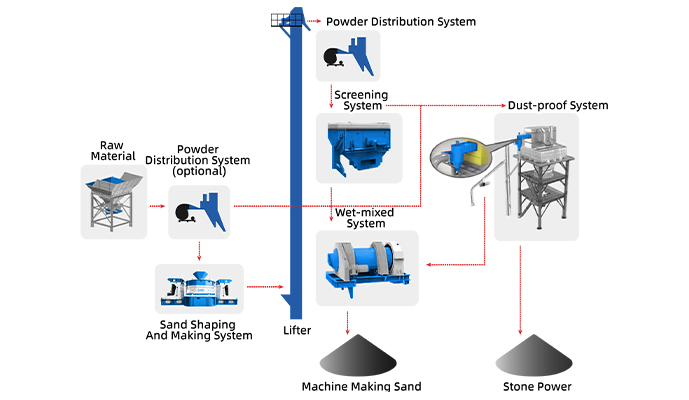

The STSL stepped sand making equipment is a tower-type sand making system that uses a dry sand making process. It mainly consists of a feeding and conveying system, a sand mold reshaping and screening system, a dust control system, a stone powder storage system, and an electrical control system. After processing, it can screen out fine crushed stone, stone powder, and semi-finished sand. Through different processes, it finally obtains fine stone powder and fine refined sand.

Photos

Technical Index

Model	Sand maker type	Vibrating screen	Max. feeding size	Processing capacity	Stone powder content	Control system
STSL220	TLS1553	2YK3070	≤60mm	220t/h	3-15% controllable	PLC control or centralized control
STSL160	CLV1263	2YK2460		160t/h
STSL60	CLV1145	2YK2160		60t/h
