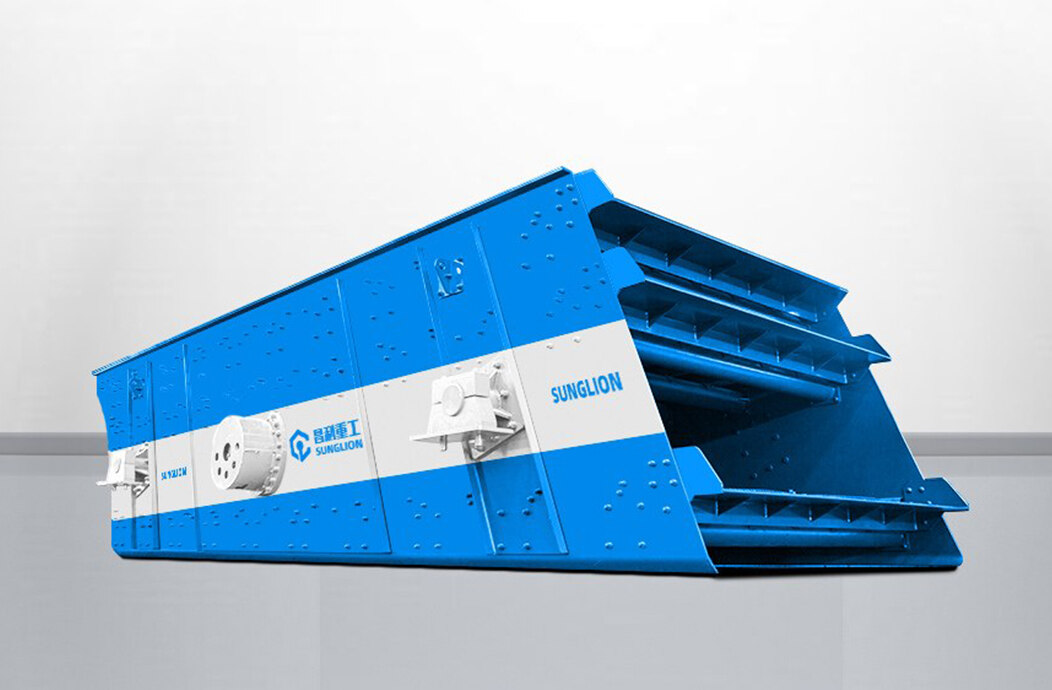

YK Series Inclined Vibrating Screen

Send E-mail Inquiry Now

Max.Feed Size: 500MM Equipment Output: 25-950(T/H)

BLURB

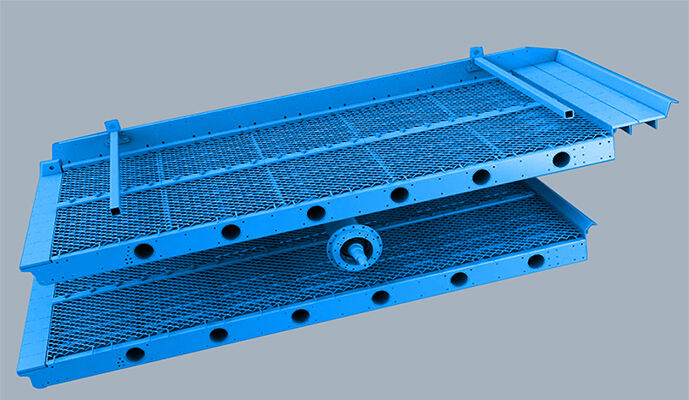

Structural Diagram – Circular Vibrating Screen

The YK series inclined vibrating screen is a multi-layer vibrating screen with a circular motion trajectory. This series of vibrating screens uses an eccentric shaft exciter, allowing for faster amplitude adjustment and enabling multi-layer screening of various specifications. This series of vibrating screens has a robust structure and strong vibration force.

The YK series inclined vibrating screen is mainly composed of a screen box, exciter, suspension (or support) device, and electric motor. The electric motor drives the main axis of the exciter to rotate through a triangular belt. The unbalanced weight on the exciter generates centrifugal inertia force, causing the screen box to vibrate. By adjusting the eccentric axis of the exciter, different amplitudes can be obtained.

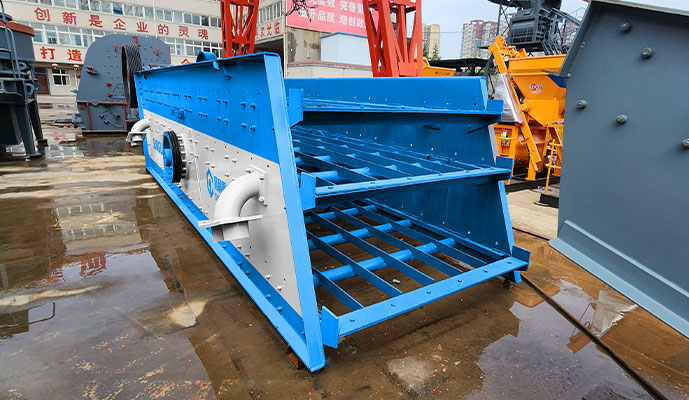

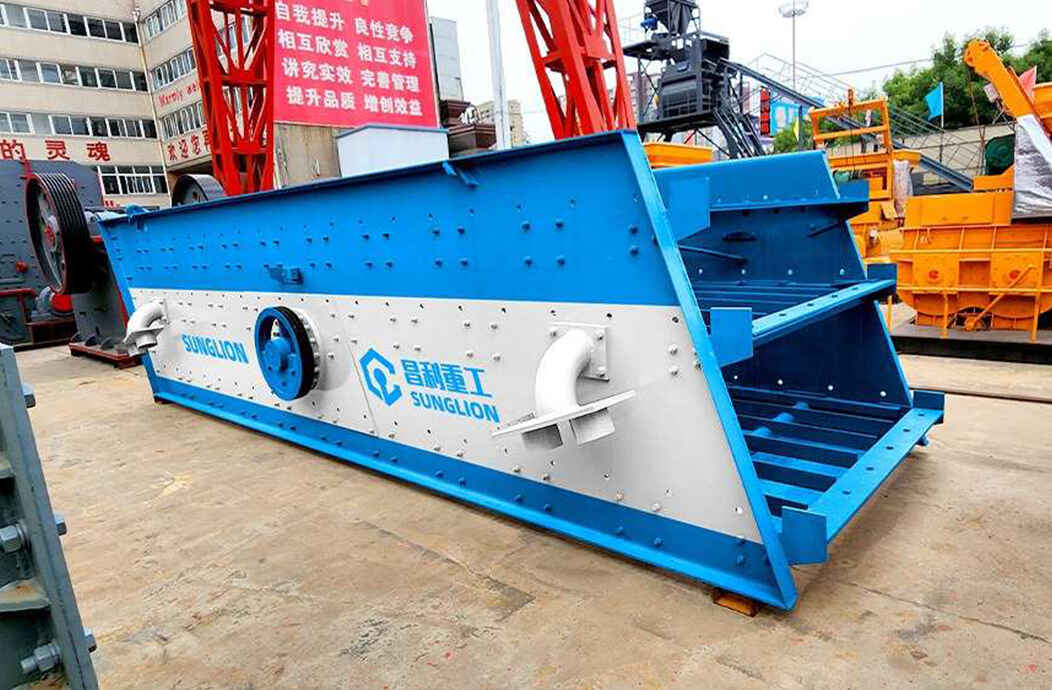

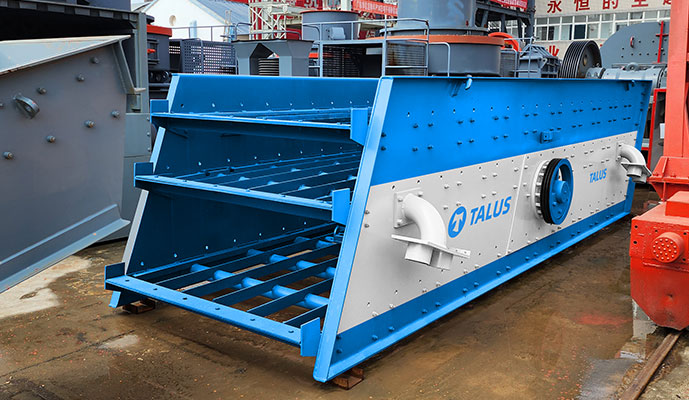

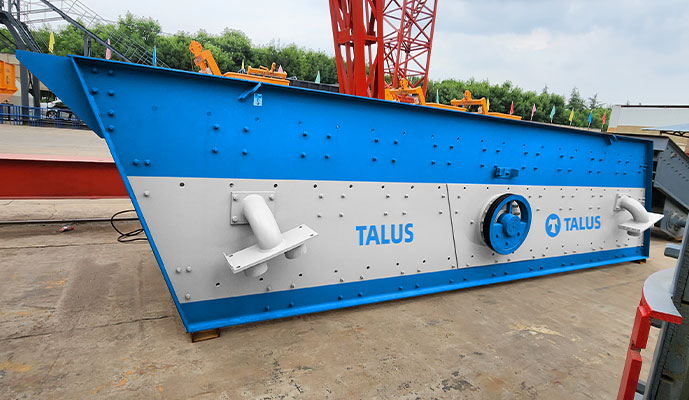

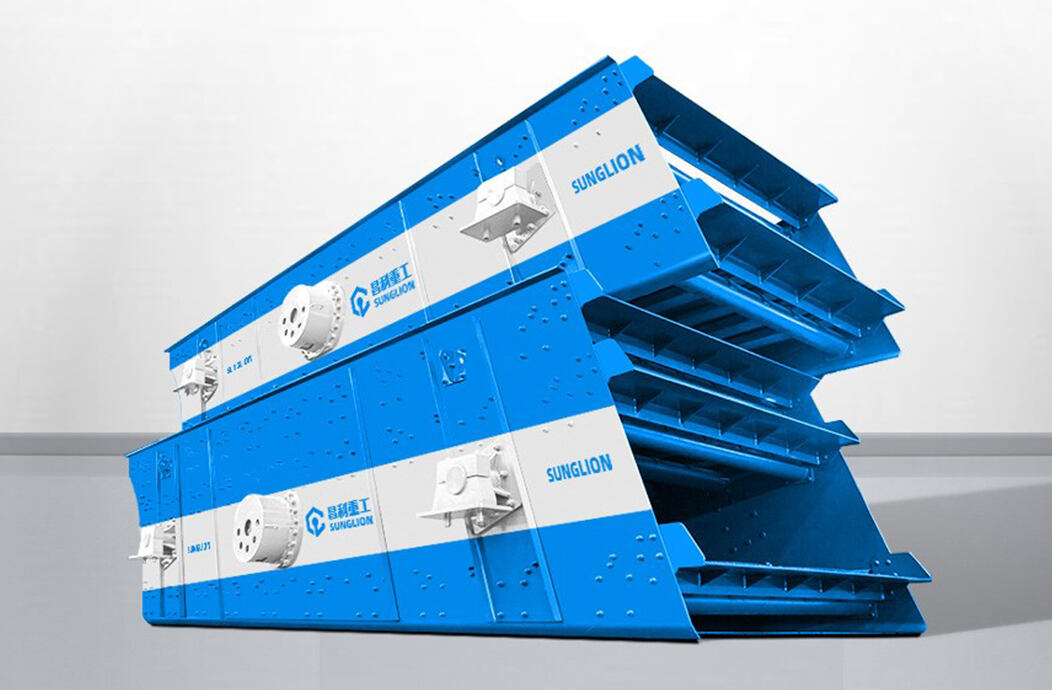

Photos

Technical Index

Model	Number of Decks	Mesh Area (m²)	Double amplitude (mm)	Vibration frequency (HZ)	Feeding size (mm)	Processing capacity (t/h)	Screen size L×H (mm)	Power (kW)	Weight
YKZ1237	1	4.4	6-8	970	0-200	30-180	1200×3700	11	3.6
2YA1237	2	4.4	6-8	970	200	40-150	1200×3700	11	3.9
3YK1237	3	4.4	6-8	970	200	25-170	1200×3700	11	4.3
4YK1237	4	4.4	6-8	970	200	25-200	1200×3700	15	4.6
YK1245	1	5.4	6-8	970	250	40-150	1200×4500	15	3.8
2YK1245	2	5.4	6-8	970	250	40-150	1200×4500	15	4.2
3YK1245	3	5.4	6-8	970	250	40-150	1200×4500	18.5	6.1
YK1545	1	6.75	6-8	970	300	100-180	1500×4500	11	3.9
2YK1545	2	6.75	6-8	970	300	100-180	1500×4500	15	4.4
3YK1545	3	6.75	6-8	970	300	100-180	1500×4500	15	4.9
4YK1545	4	6.75	6-8	970	300	100-180	1500×4500	18.5	5.3
2YK1548	2	7.2	6-8	970	300	63-300	1500×4500	15	4.9
3YK1548	3	7.2	6-8	970	300	180-280	1500×4500	15	6
4YK1548	4	7.2	6-8	970	300	35-315	1500×4500	15	7
YK1848	1	8.64	6-8	970	300	100-250	1800×4800	18.5	4.7
2YK1848	2	8.64	6-8	970	300	100-500	1800×4800	18.5	6.5
3YK1848	3	8.64	6-8	970	300	100-500	1800×4800	18.5	7.5
4YK1848	4	8.64	6-8	970	300	100-500	1800×4800	22	9.1
YK1860	1	10.8	6-8	970	400	100-450	1800×6000	22	4.9
2YK1860	2	10.8	6-8	970	400	100-300	1800×6000	22	7.2
3YK1860	3	10.8	6-8	970	400	100-250	1800×6000	22	8.3
4YK1860	4	10.8	6-8	970	400	100-250	1800×6000	22	9.2
YK2160	1	12.6	6-8	970	400	100-864	2100×6000	30	5.9
2YK2160	2	12.6	6-8	970	400	150-800	2100×6000	30	7.8
3YK2160	3	12.6	6-8	970	400	150-800	2100×6000	30	10.7
4YK2160	4	12.6	6-8	970	400	150-800	2100×6000	37	11.1
YK2460	1	14.4	6-8	970	400	150-875	2400×6000	37	6.2
2YK2460	2	14.4	6-8	970	400	150-875	2400×6000	37	8
3YK2460	3	14.4	6-8	970	400	150-875	2400×6000	37	10.7
4YK2460	4	14.4	6-8	970	400	150-875	2400×6000	37	12.8
YK2865	1	18.2	6-8	700-900	400	150-875	2800×6000	37	9.8
2YK2865	2	18.2	6-8	700-900	400	150-875	2800×6000	37	11.4
3YK2865	3	18.2	6-8	700-900	400	150-875	2800×6000	45	13
4YK2865	4	18.2	6-8	700-900	500	200-875	2800×6000	45	14.2
YK3060	1	18	6-8	700-900	500	200-900	3000×6000	37	9.1
2YK3060	2	18	6-8	700-900	500	200-900	3000×6000	37	12.6
3YK3060	3	18	6-8	700-900	500	200-900	3000×6000	45	15.6
YK3072	1	21.6	6-8	700-900	500	200-950	3000×7200	37	9
2YK3072	2	21.6	6-8	700-900	500	200-950	3000×7200	45	12.8
3YK3072	3	21.6	6-8	700-900	500	200-950	3000×7200	2×37	16.8
4YK3072	4	21.6	6-8	700-900	500	200-950	3000×7200	2×37	19.5

Related case

Xinjiang Field Case Configuration

In Xinjiang, the vast territory, dispersed raw materials, and high transportation costs are unavoidable pain points in cobblestone sand production. Choosing the right mobile crushing and sand production line offers two core advantages that can directly help you "break through and become profitable."

Kyrgyzstan Field Case Configuration

The project has a capacity of 200 tons per hour and adopts a closed-loop process of "two-stage crushing + high-efficiency shaping + closed-circuit screening + deep cleaning".

Jilin Liaoyuan Field Case Configuration

n the field of manufactured sand, granite has always been hailed as the "king of hard rocks"—it boasts high strength, wear resistance, and excellent finished particle shape, making it a high-quality raw material for producing manufactured sand.

Lianyungang Field Case Configuration

Dry sand making towers, as a modern sand making solution, are based on a dry production mode that integrates high-efficiency sand making, particle shape optimization, stone powder control, gradation adjustment, and environmentally friendly dust removal.

Qinghai Field Case Configuration

Granite, as a representative of high-hardness rock, places higher demands on equipment performance and system configuration in its sand making process. Below is an analysis of the core configuration of a mature and stable 120-tph granite sand making production line.

Send Message

If you need our products please write down any questions, we will reply as soon as possible.

Related Products

YK Series Inclined Vibrating Screen

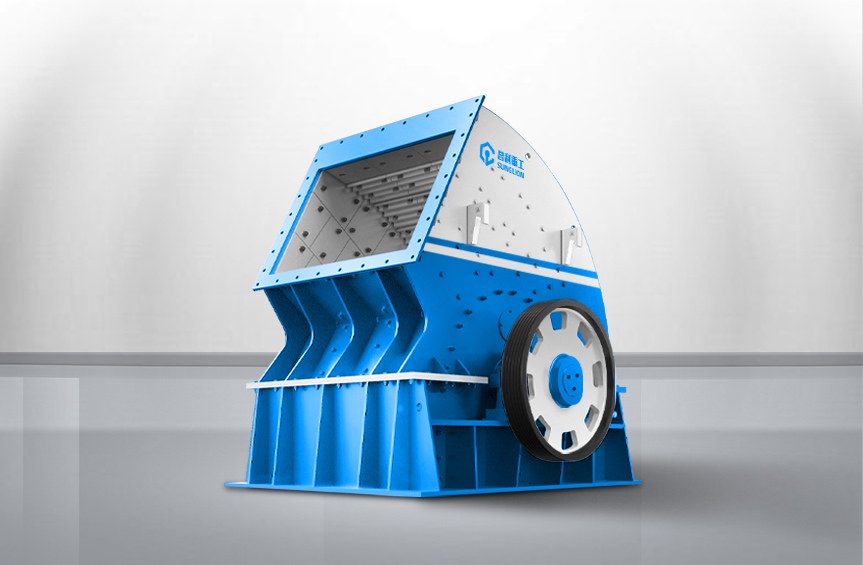

PC/PCZ Series Heavy Hammer Crusher
