Granite Fine Sand Process Line Equipment

Send E-mail Inquiry Now

Processed Materials: Hard rocks: granite, basalt, river pebbles, iron ore, etc. (compressive strength ≤350MPa); Medium-hard rocks: limestone, dolomite, sandstone, shale, etc.; Recyclable resources: construction waste, concrete blocks, industrial waste residue, etc.

Max.Feed Size: 500MM

BLURB

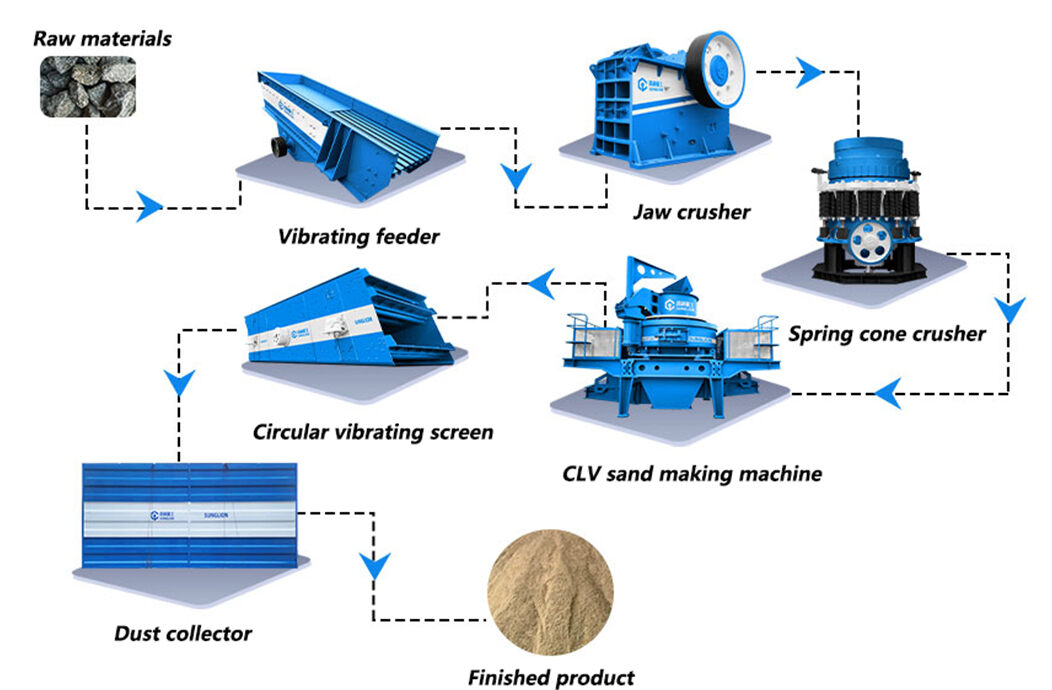

The mining crushing and sand making line is an integrated production system that combines crushing, sand making, screening, and washing processes. It can transform raw ore from mines into construction sand and aggregates with excellent particle shape and reasonable gradation, making it a core raw material supply equipment for infrastructure construction.

Jaw Crusher: Core equipment for coarse crushing, with a large crushing ratio and strong processing capacity.

Spring Cone Crusher: Key equipment for medium crushing, producing uniform particle size and refining materials after coarse crushing.

VSI Impact Sand Making Machine: Dual function of sand making and shaping, producing rounded particles to meet the requirements of high-quality sand.

Pulse Dust Collector: Highly efficient dust collection, meeting the requirements of green and environmentally friendly production.

Supporting auxiliary equipment: High-precision feeder, Multi-stage vibrating screen, High-efficiency conveyor

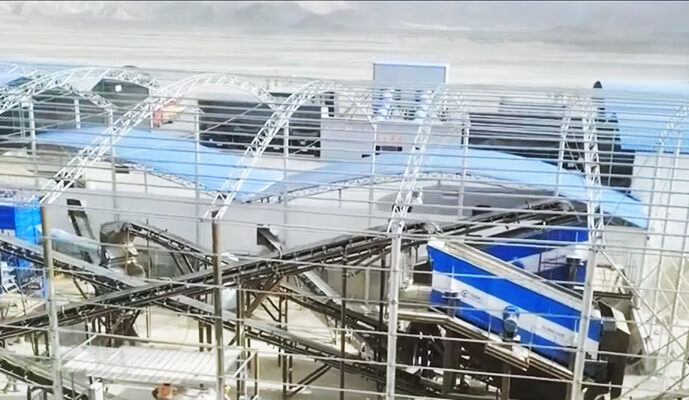

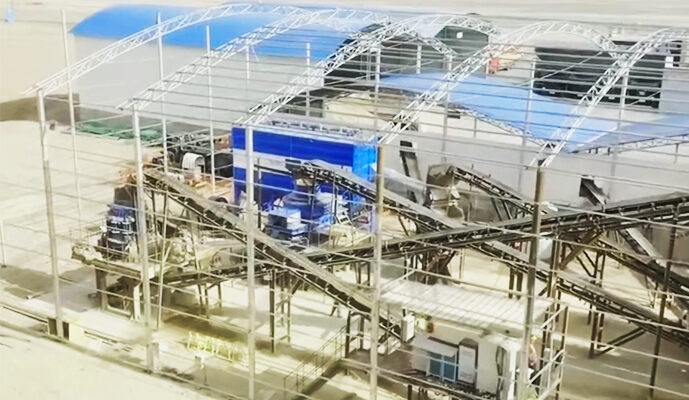

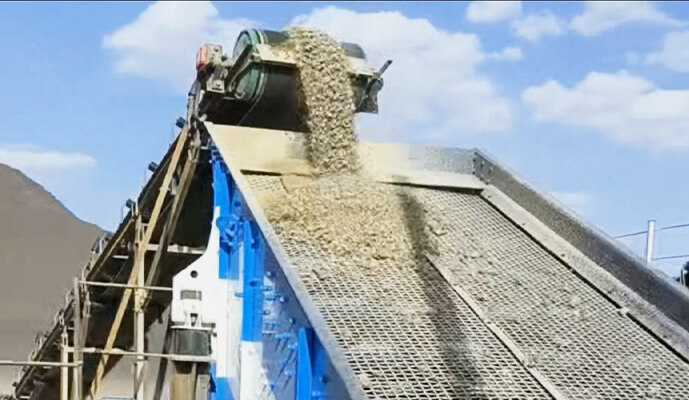

Photos

Technical Index

Model	Product name	Product Model	Quantity	Capacity (t/h)	Power (kW)	Max feeding size (mm)
MCS-CL100	Jaw crusher	PE600X900	1set	50-180	75	500
	Spring cone crusher	PY1200S-X	1set	75-175	132	92
	Sand making machine	CLV7615	1set	100-280	150	35
	vibrating feeder	ZSW380X96	1set	120-210	11	500
	Vibrating screen	2YK1545	1set	100-180	15	300

Related case

Xinjiang Field Case Configuration

In Xinjiang, the vast territory, dispersed raw materials, and high transportation costs are unavoidable pain points in cobblestone sand production. Choosing the right mobile crushing and sand production line offers two core advantages that can directly help you "break through and become profitable."

Kyrgyzstan Field Case Configuration

The project has a capacity of 200 tons per hour and adopts a closed-loop process of "two-stage crushing + high-efficiency shaping + closed-circuit screening + deep cleaning".

Jilin Liaoyuan Field Case Configuration

n the field of manufactured sand, granite has always been hailed as the "king of hard rocks"—it boasts high strength, wear resistance, and excellent finished particle shape, making it a high-quality raw material for producing manufactured sand.

Lianyungang Field Case Configuration

Dry sand making towers, as a modern sand making solution, are based on a dry production mode that integrates high-efficiency sand making, particle shape optimization, stone powder control, gradation adjustment, and environmentally friendly dust removal.

Qinghai Field Case Configuration

Granite, as a representative of high-hardness rock, places higher demands on equipment performance and system configuration in its sand making process. Below is an analysis of the core configuration of a mature and stable 120-tph granite sand making production line.
