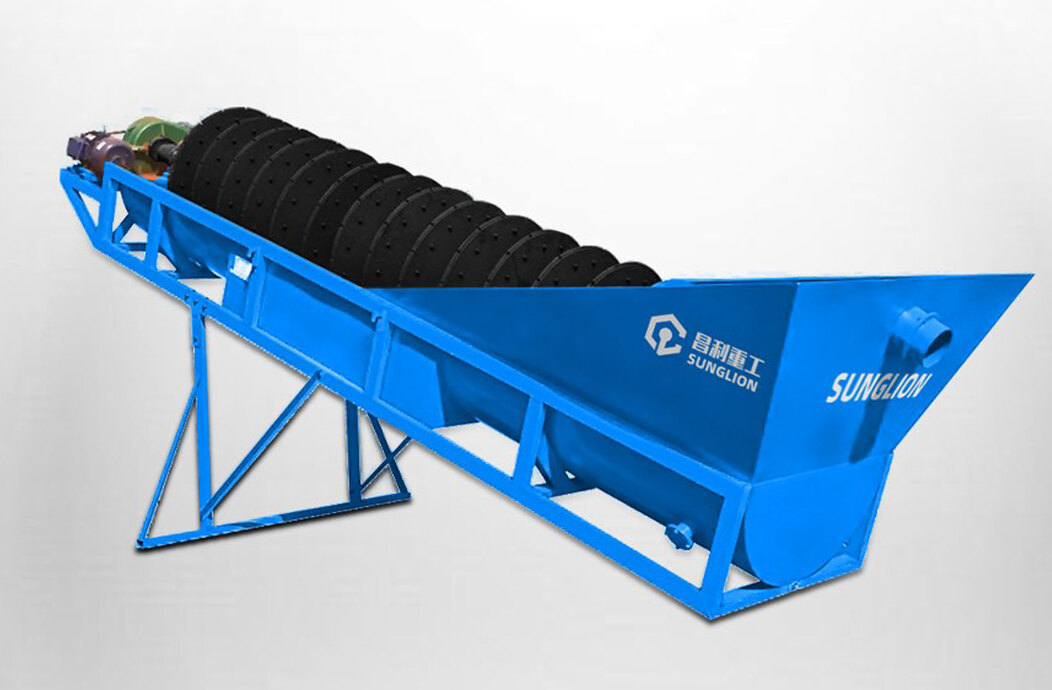

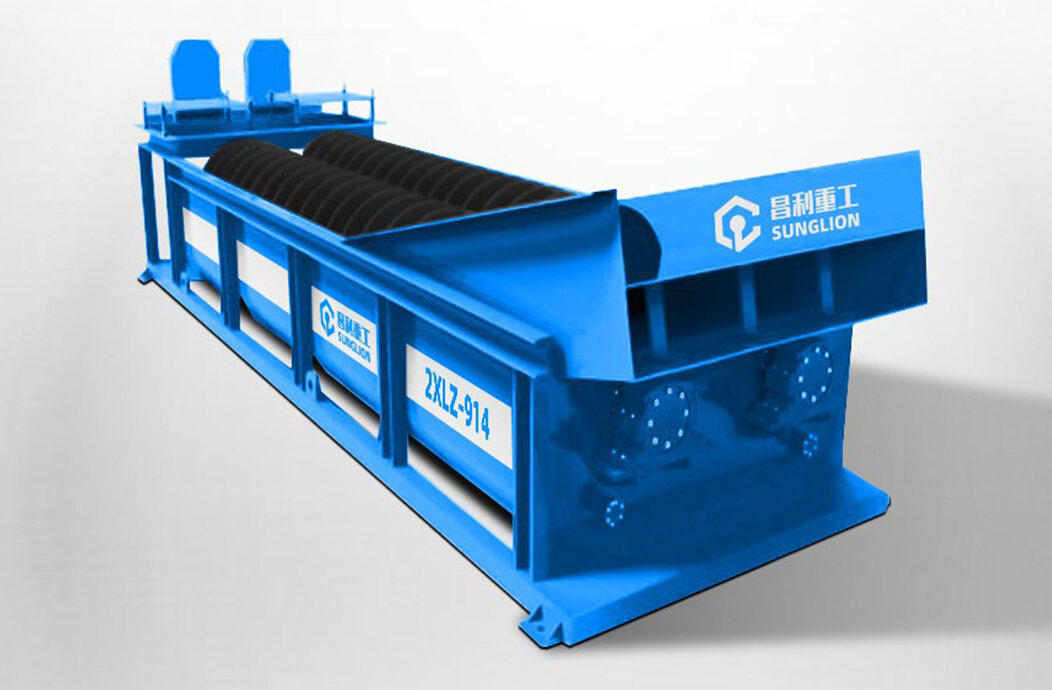

XL/XLZ Series Spiral Sand Washing Machine

Send E-mail Inquiry Now

Spiral Diameter: 610-1120mm Equipment Output: 40-350(T/H)

BLURB

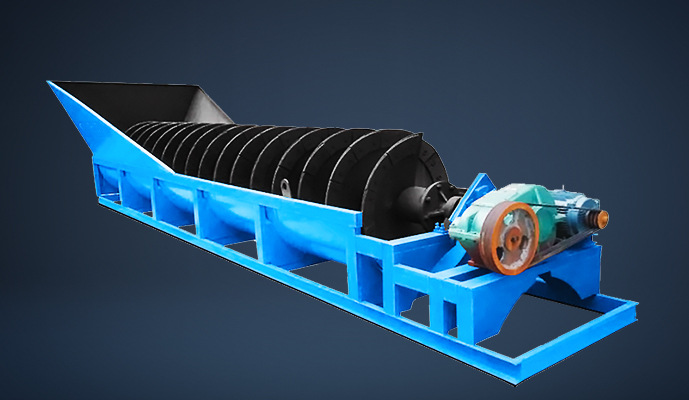

Main image – Spiral sand washing machine

The screw sand washing machine is a sand washing device that mainly uses a spiral device inside the equipment to stir sand and gravel materials, and then gradually screens them under the action of the spiral device, finally discharging them from the top discharge port, thereby achieving the purpose of cleaning and screening sand and gravel materials.

The spiral sand washing machine consists of a tank, a reducer, a motor, a central shaft, spiral blades, and a support frame. The machine rotor adopts a central structure, with the spiral blades mounted on the central shaft, which is connected to the reducer for drive operation.

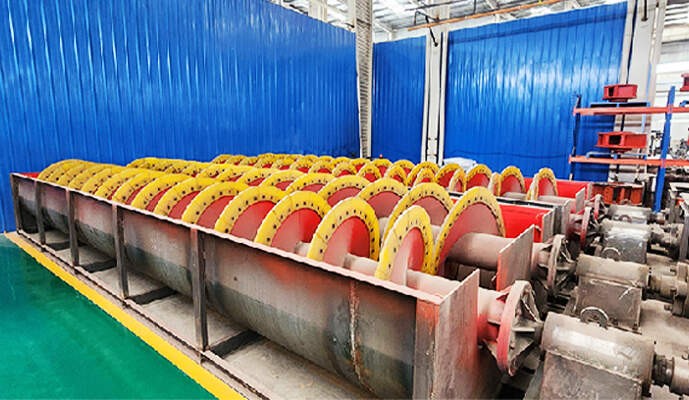

Photos

Technical Index

Model	LSX610	LSX	LSX	LSX	LSX	LSX
Number of spirals	1	2	3	2	1	2
Spiral diameter (mm)	610	762	920	920	1120	1120
Tank length (mm)	7225	7620	7585	7585	9750	9750
Feeding size (mm)	≤10	≤10	≤10	≤10	≤10	≤10
Processing capacity (t/h)	40~50	50~75	100	200	175	350
Spiral speed (r/min)	32	26	21	21	17	17
Motor power (kw)	7.5	11	11	11×2	18.5	18.5×2
Water consumption (t/h)	6~63	9~63	10~80	20~160	20~150	40~300
Weight (t)	3.09	5.23	6.2	11.5	10.9	17.8
