Productivity: 25-120 M3/h Mixing Host: JS500-JS2000

BLURB

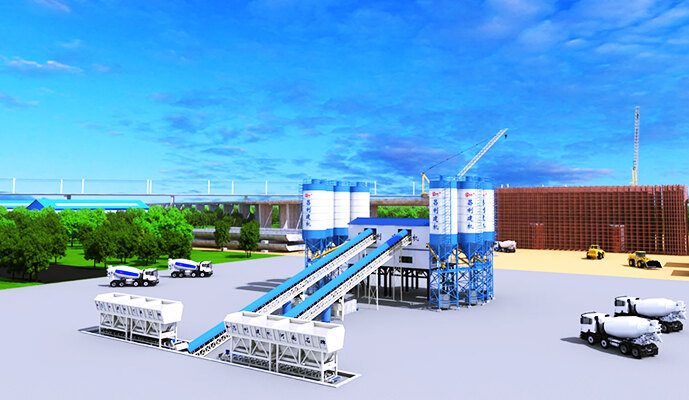

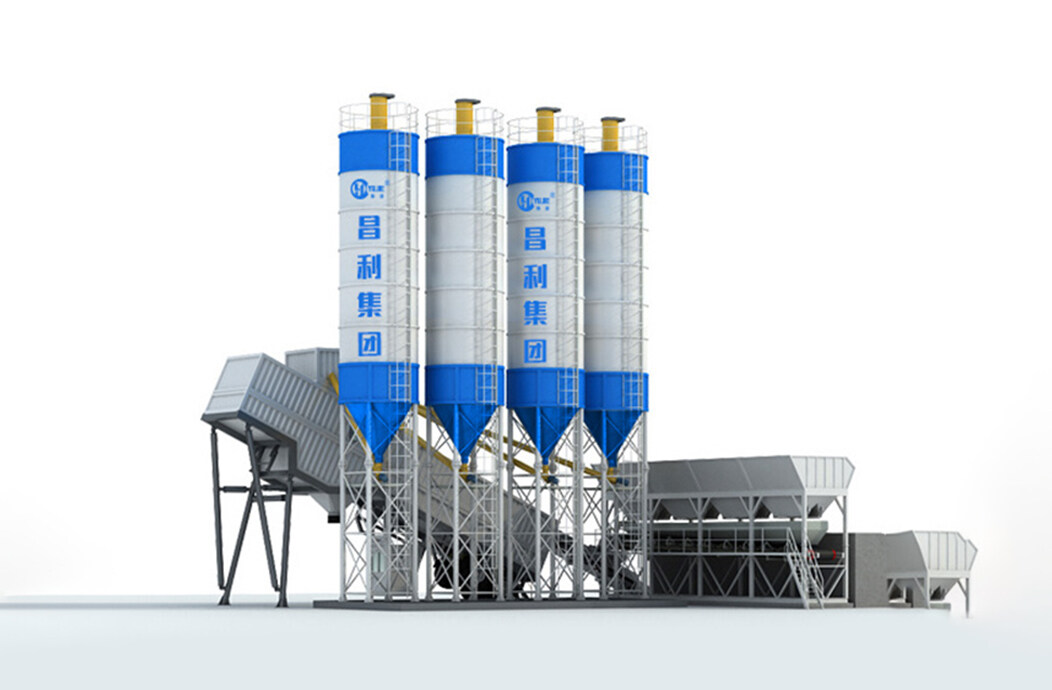

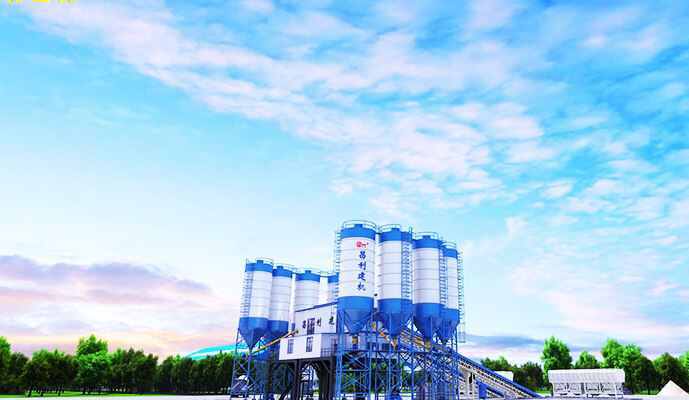

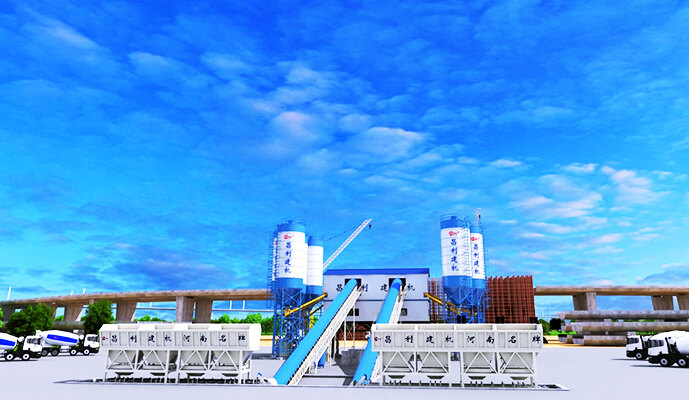

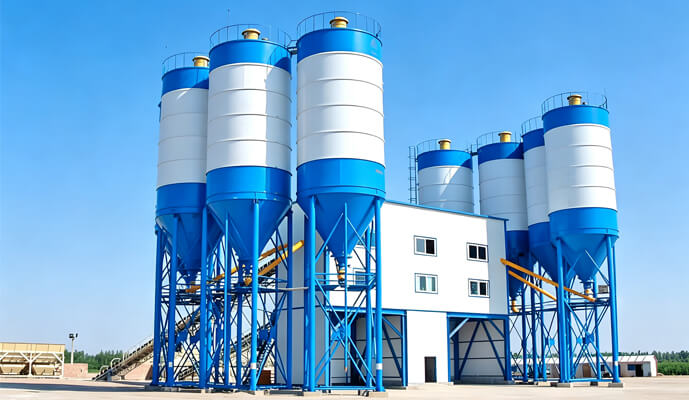

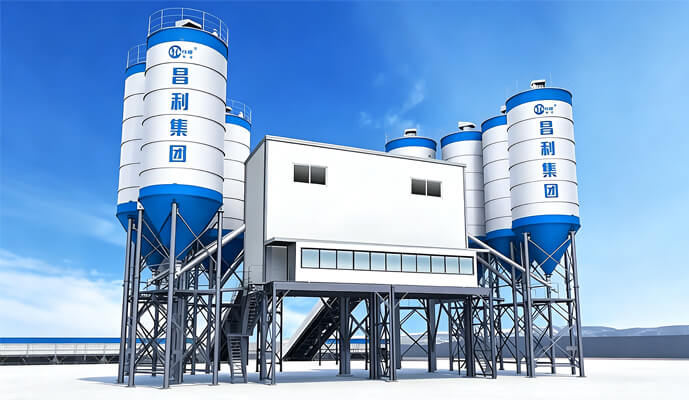

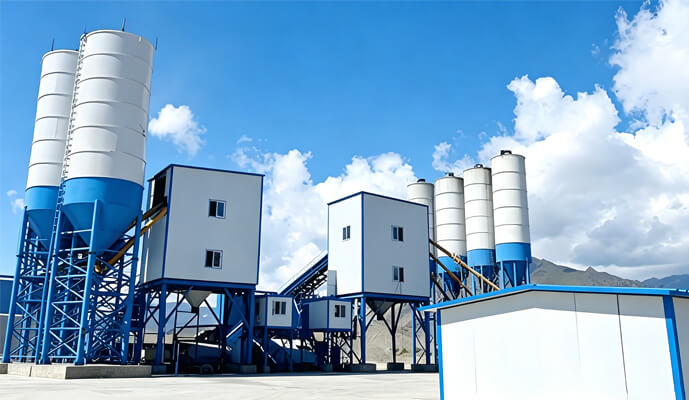

The stationary concrete mixing plant features a modular, split-structure design. It comprises a batching machine, an aggregate conveying system, a main mixer, a powder storage and conveying system, water and admixture metering units, a fully automated control system, as well as auxiliary systems for dust removal and voltage stabilization. Characterized by an organized layout, high production capacity, precise metering, and a high degree of automation, the plant is capable of continuous and stable production of various concrete mix designs.

Ready mix concrete mixing plant is a large-scale, complete set of concrete production equipment that is permanently installed and intended for long-term, fixed-location operation. It requires the planning of a dedicated site, the pouring of a reinforced concrete foundation, and the embedding of anchor bolts to secure the entire assembly.

Application areas: widely applied in scenarios such as commercial concrete batching plants, large-scale infrastructure projects, the supply of permanent urban construction materials, and long-term construction operations at major job sites.

Photos

Technical Index

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120
Theoretical Productivity（m³/h）	25	35	50	60	75	90	120
Concrete Mixer	JS500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000
Batching Machine	PLD800	PLD1200	PLD1600	PLD1600	PLD2400	PLD2400	PLD3200
Kinds Of Aggregate	2/3/4	2/3/4	3/4	3/4	3/4	4	3/4/5/6
Maximum Aggregate Size(mm)	60	80	80	80	80	80	80
Discharge Height(mm)	3800	3800	4100	4100	4100	4100	4200
