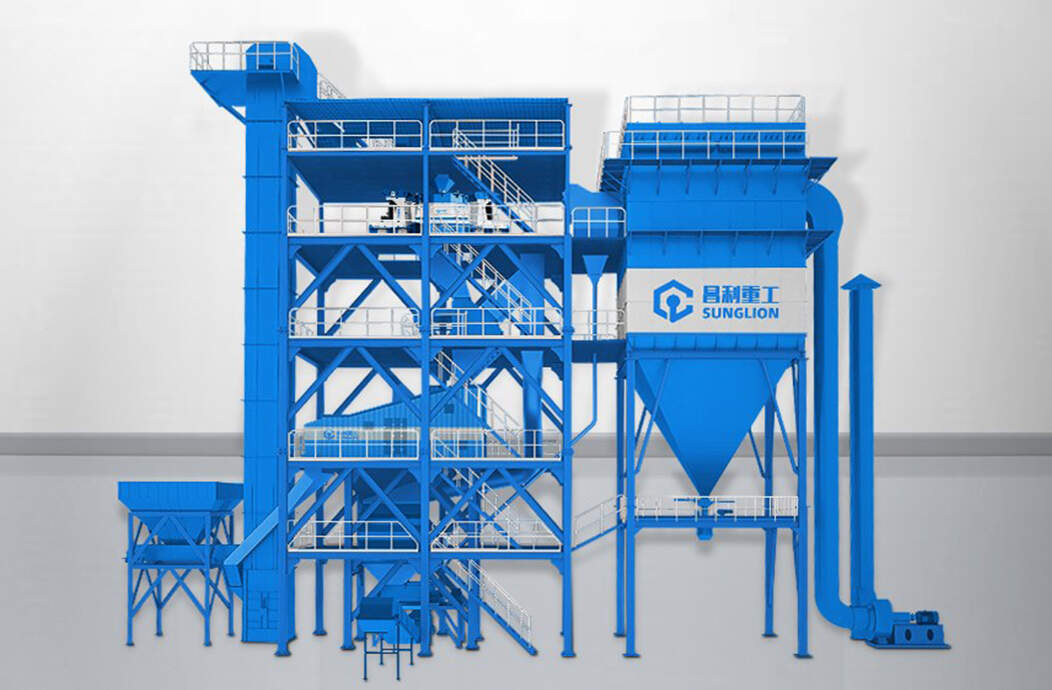

Tower Like Sand Making Plant

Send E-mail Inquiry Now

Max.Feed Size: 60mm Equipment Output: 100-440(T/H)

BLURB

The TSL tower sand making machine adopts a modular assembly of steel frame structure, integrating systems such as comb feeding, sand making, screening, conveying, and dust prevention into the tower structure. It is a dry sand reshaping system that optimizes particle size, controls stone powder, adjusts gradation, controls moisture content, and carries out environmental protection treatment.

Crushed stone is fed into the sand making machine via a conveyor belt. After being ground by a high-frequency mill, the crushed stone is sent to the stone powder separation chamber. The sand powder content is controlled by adjusting the air inlet size of the dust control box and the system air volume. The processed material enters the separation screen to separate fine crushed stone, stone powder, and pre-made sand, which are then sent to different processes to obtain refined sand.

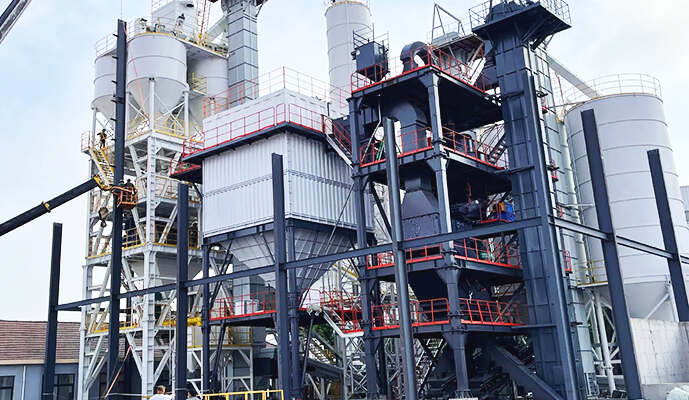

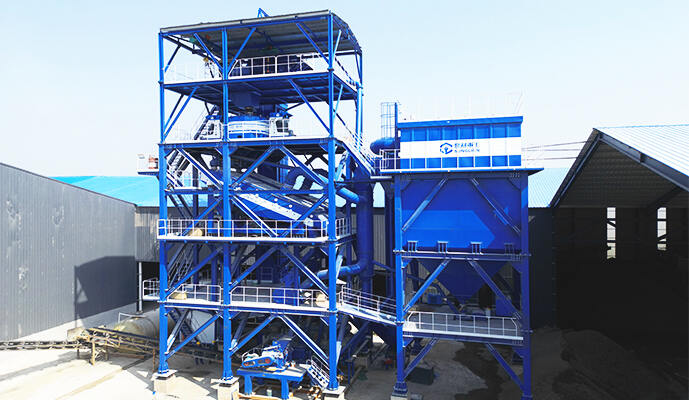

Photos

Technical Index

Model	Sand maker type	Vibrating screen	Max. feeding size	Processing capacity	Stone powder content	Control system
TSL220	TLS1553	2YK3070	≤60mm	220t/h	3-15% controllable	PLC control or
TSL160	CLV1263	2YK2460		160t/h		centralized control
TSL60	CLV1145	2YK2160		60t/h

Related case

Xinjiang Field Case Configuration

In Xinjiang, the vast territory, dispersed raw materials, and high transportation costs are unavoidable pain points in cobblestone sand production. Choosing the right mobile crushing and sand production line offers two core advantages that can directly help you "break through and become profitable."

Kyrgyzstan Field Case Configuration

The project has a capacity of 200 tons per hour and adopts a closed-loop process of "two-stage crushing + high-efficiency shaping + closed-circuit screening + deep cleaning".

Jilin Liaoyuan Field Case Configuration

n the field of manufactured sand, granite has always been hailed as the "king of hard rocks"—it boasts high strength, wear resistance, and excellent finished particle shape, making it a high-quality raw material for producing manufactured sand.

Lianyungang Field Case Configuration

Dry sand making towers, as a modern sand making solution, are based on a dry production mode that integrates high-efficiency sand making, particle shape optimization, stone powder control, gradation adjustment, and environmentally friendly dust removal.

Qinghai Field Case Configuration

Granite, as a representative of high-hardness rock, places higher demands on equipment performance and system configuration in its sand making process. Below is an analysis of the core configuration of a mature and stable 120-tph granite sand making production line.

Send Message

If you need our products please write down any questions, we will reply as soon as possible.

Related Products

Semi-underground Stepped Sand Making Plant

The STSL series semi-underground stepped sand making plant is a relatively simple sand making plant. It installs the feeding and conveying system and the crushing and sand making system underground, and uses an enclosure structure to enclose the surface equipment to reduce noise and dust pollution.

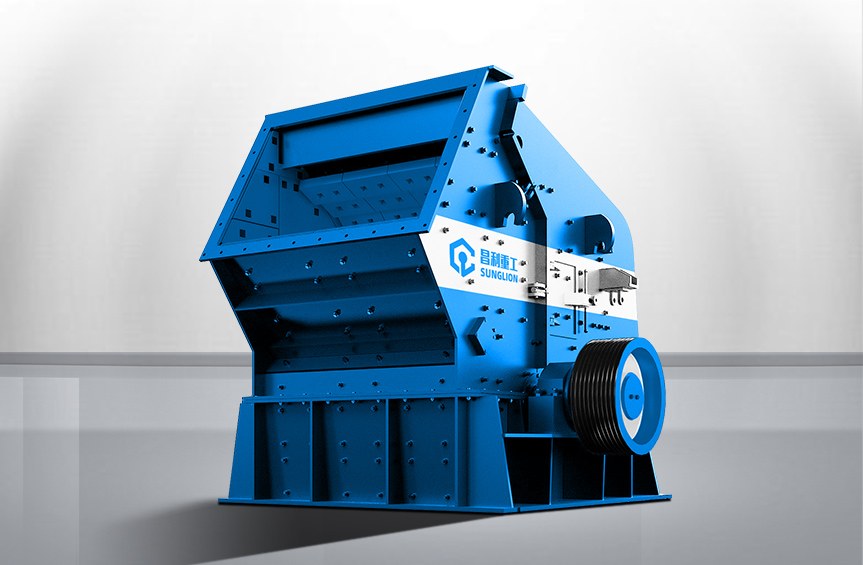

PF Series Impact Crusher
