PE Series Jaw Crusher

Send E-mail Inquiry Now

Maximum Feeding Size: 125-1500MM Processing capacity: 1-2200(T/H)

Blurb

Jaw crushers are one of the earliest crushing equipment, widely used in metallurgy, chemical industry, building materials, power, transportation and other industries for coarse, medium and fine crushing of various ores and rocks with compressive strength of 147~245MPa.

The PE series crusher operates on a driven compression principle. A motor drives a belt and pulley, which in turn drives an eccentric shaft, causing the moving jaw to swing up and down. When the moving jaw moves downwards, the angle between the fixed jaw and the moving jaw decreases, crushing the material. When the moving jaw rises, the angle between the fixed jaw and the moving jaw increases, and the moving jaw plate moves away from the fixed jaw plate under the action of the pull rod and spring. At this point, the crushed material is discharged from the bottom of the crushing chamber.

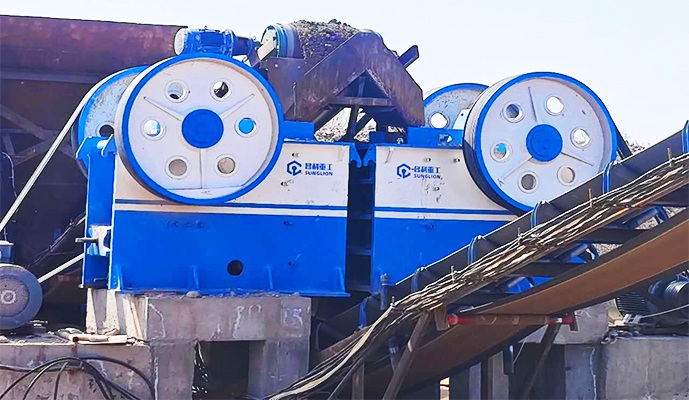

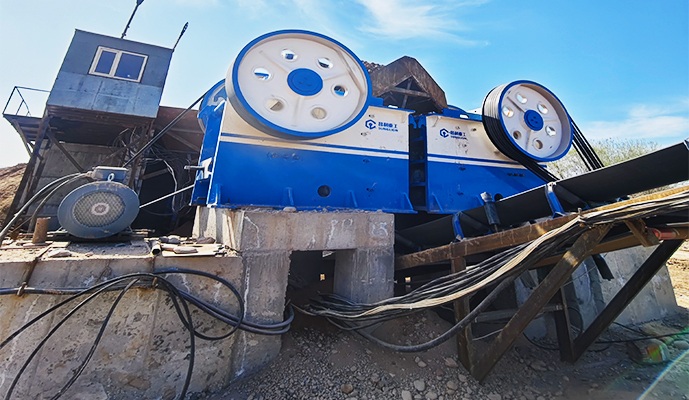

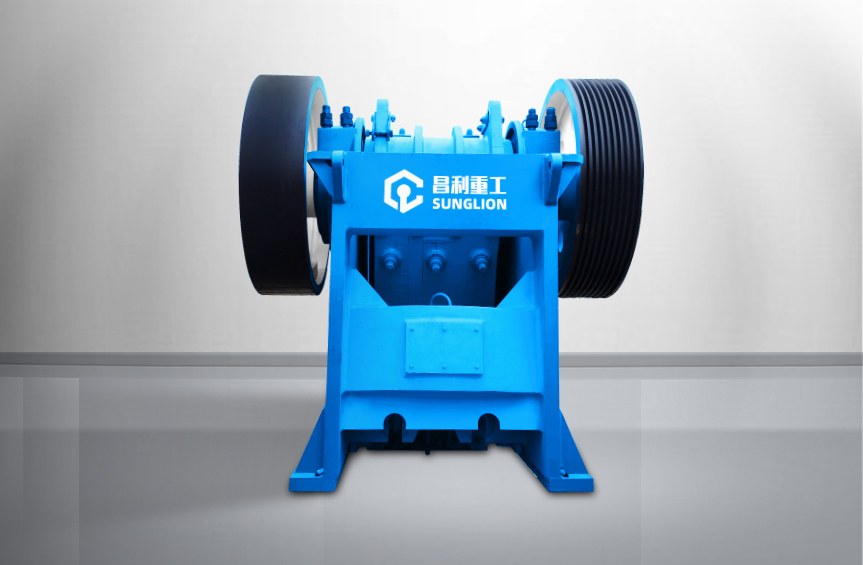

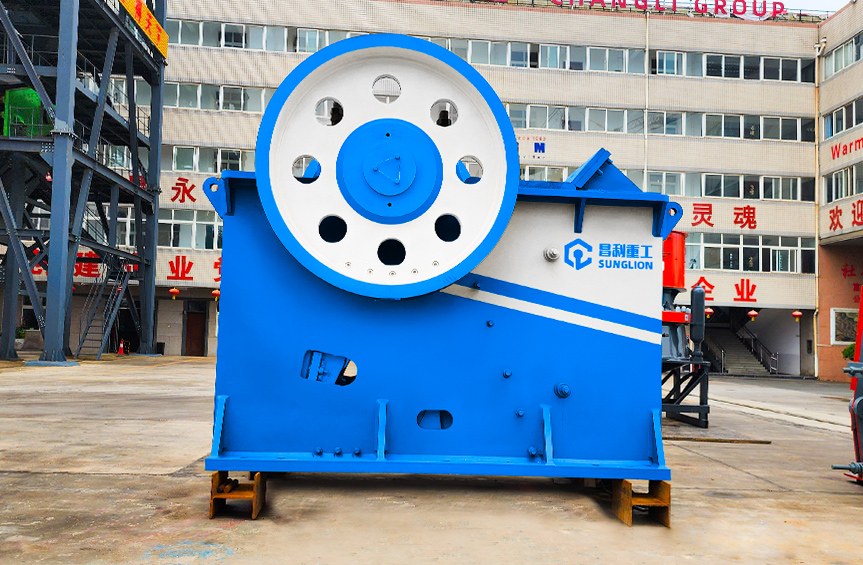

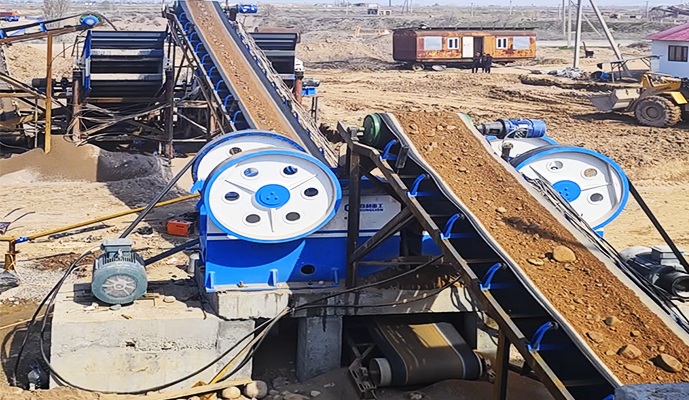

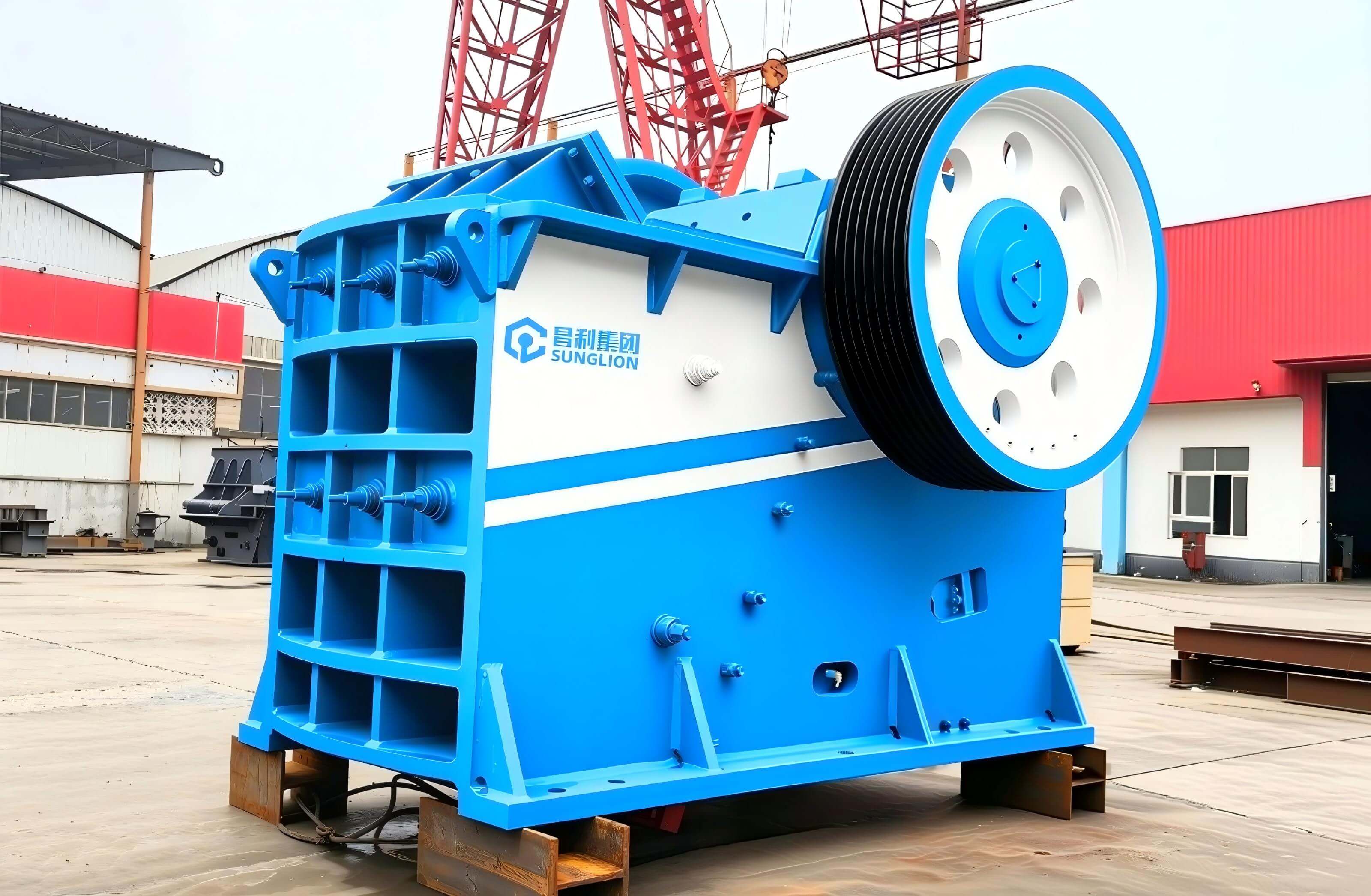

Pictures

Technical Index

Model	Feeding size (mm)	Max. feeding size (mm)	Adjustable discharge range (mm)	Capacity (t/h)	Eccentric shaft rotation (r/min)	Power (kW)	Overall dimensions(L×W×H) (mm)
PE- 1600×2100	1600×2100	1500	300-400	1300-2200	160	380	6210×4013×4716
PE- 1500×1800	1500×1800	1200	220-350	500-1000	180	280	5160×3660×4248
PE- 1200×1500	1200×1500	1020	150-350	400-800	180	220	4200×3300×3500
PE- 1000×1200	1000×1200	850	195-300	280-560	200	160	3480×2876×3330
PE- 900×1200	900×1200	750	95-165	220-450	200	132	3380×2870×3330
PE- 750×1060	750×1060	630	80-140	110-320	250	110	2660×2430×2800
PE- 600×900	600×900	500	65-160	50-180	250	75	2190×2206×2300
PE- 500×750	500×750	425	50-100	40-110	275	55	1980×2080×1870
PE- 400×600	400×600	340	40-100	16-60	275	30	1730×1730×1630
PE- 250×400	250×400	210	20-60	5-20	300	15	1300×1090×1270
PE- 200×350	200×350	180	18-70	3-10	260	11	1000×870×990
PE- 200×300	200×300	180	15-50	2-6	260	7.5	910×750×990
PE- 150×250	150×250	125	10-40	1-3	250	5.5	720×660×850
