Maximum Feeding Size: 1200MM Processing capacity: 1280(T/H)
Blurb

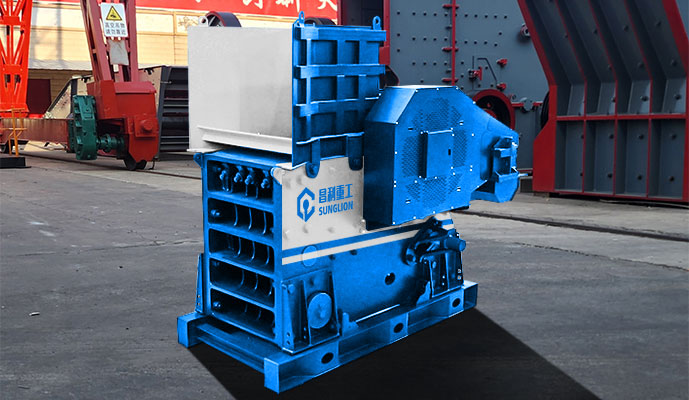

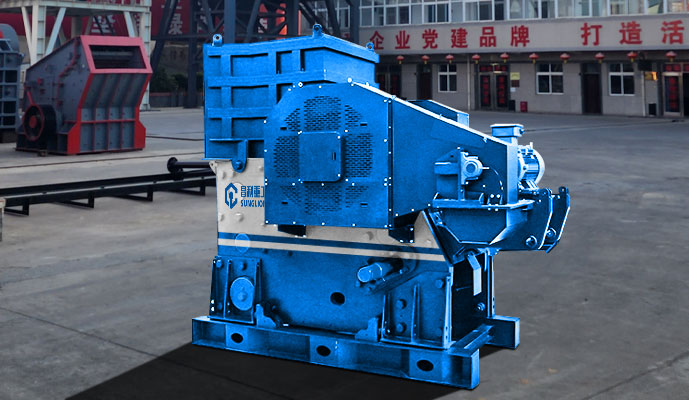

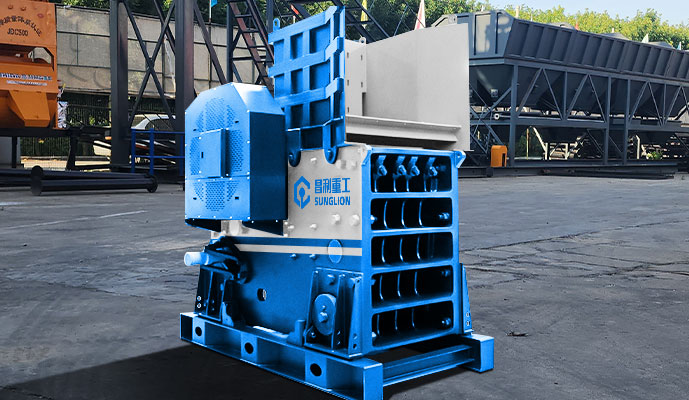

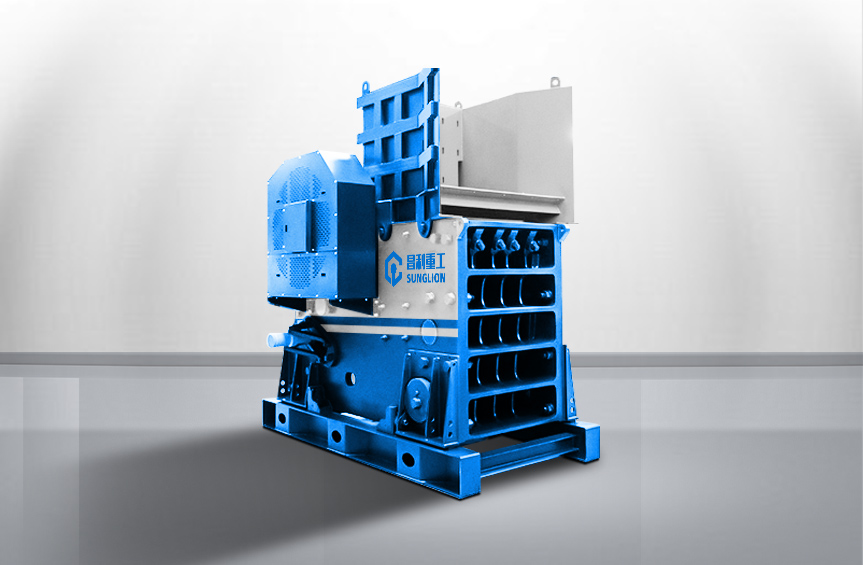

The European-style modular jaw crusher adopts an innovative modular, non-welded frame structure, which improves the equipment's fatigue resistance and reliability, and simplifies various installation methods. It features high structural strength, high equipment reliability, large crushing ratio, high capacity, and low overall cost.

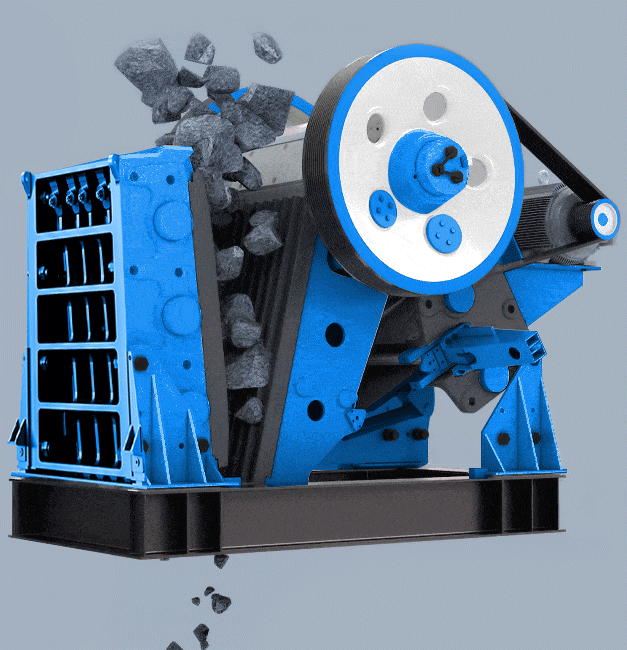

In a European-style jaw crusher, as the movable jaw rises, the angle between the toggle plate and the movable jaw increases, pushing the movable jaw plate closer to the fixed jaw plate. Simultaneously, the material is crushed or shredded. As the movable jaw descends, the angle between the toggle plate and the movable jaw decreases, and the movable jaw plate moves away from the fixed jaw plate. The shredded material is discharged from the hopper outlet.



|
Model |
Max. feeding size (mm) |
Feeding opening size (mm) |
Range of discharging opening(mm) |
Capacity (t/h) |
Motor power (kW) |
Overall dimension (L×W×H) (mm) |
|
CX96 |
480 |
930×580 |
60~175 |
105~390 |
4P 90 |
2850×2270×1950 |
|
CX106 |
560 |
1060×700 |
70~200 |
150~500 |
4P 110 |
3280×2580×2400 |
|
CX120 |
700 |
1200×870 |
70~200 |
175~610 |
4P 160 |
3700×2790×2950 |
|
CX125 |
760 |
1250×950 |
100~250 |
270~831 |
4P 160 |
4230×2780×2960 |
|
CX150 |
960 |
1400×1200 |
125~250 |
340~880 |
4P 200 |
5030×3440×3970 |
|
CX160 |
960 |
1600×1200 |
150~300 |
430~1145 |
4P 250 |
5780×3460×3580 |
|
CX200 |
1200 |
2000×1500 |
175~300 |
630~1435 |
6P 400 |
6600×4030×4400 |
|
CX1511 |
850 |
1500×1070 |
125~300 |
425~1195 |
6P 200 |
4130×3000×3330 |
|
CX1513 |
1040 |
1500×1300 |
150~300 |
530~1280 |
6P 200 |
4620×2890×4190 |
