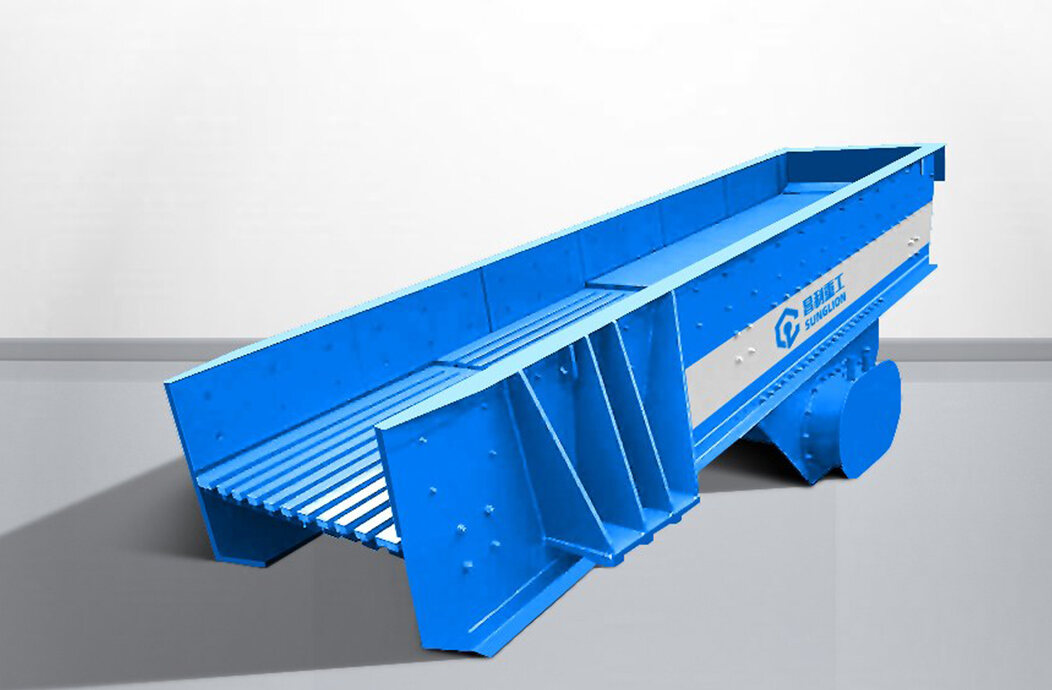

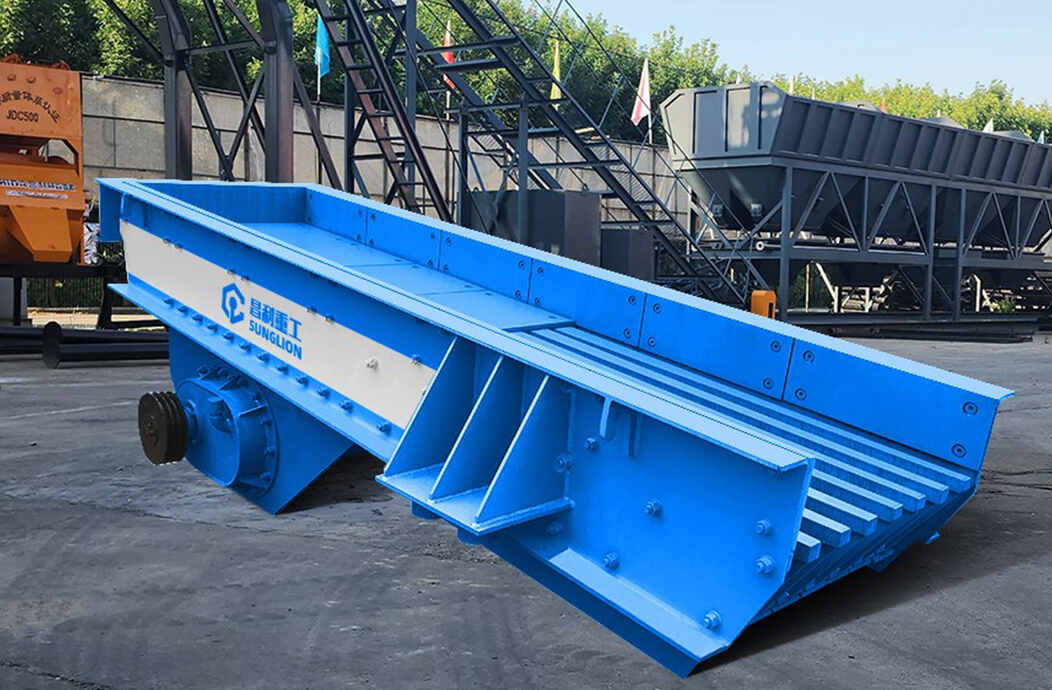

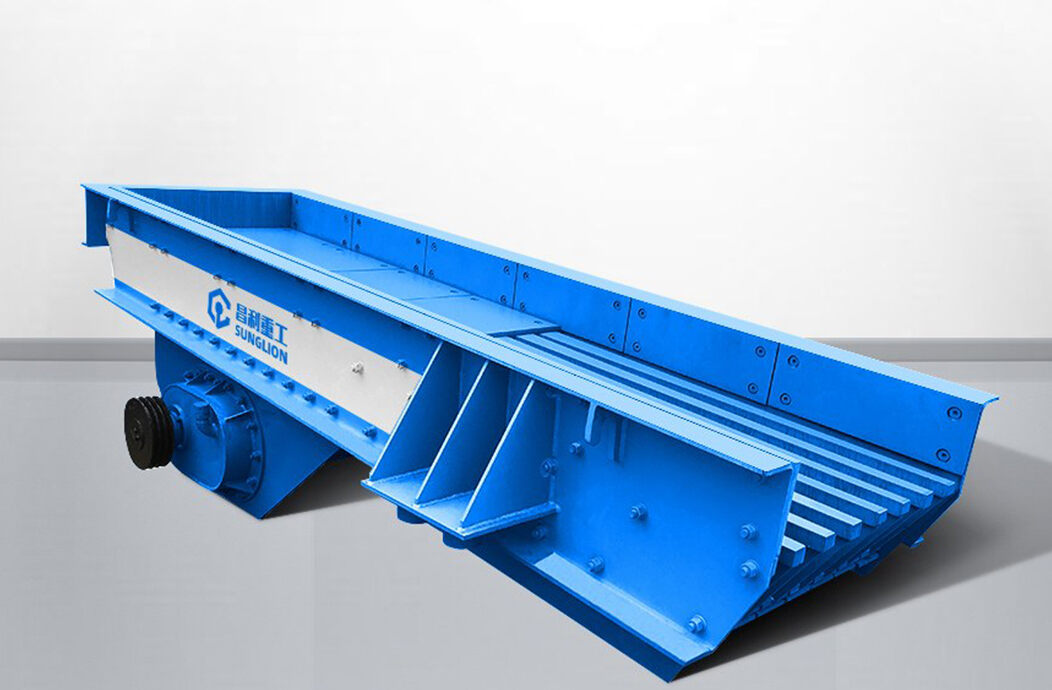

GZD Series Vibrating Feeder

Send E-mail Inquiry Now

Max.Feed Size: 1050MM Equipment Output: 30-800(T/H)

BLURB

The vibrating feeder (also known as a disc feeder) is located at the front end of the primary crushing equipment and is used to uniformly, regularly and continuously feed block and granular materials in the hopper into the target production equipment.

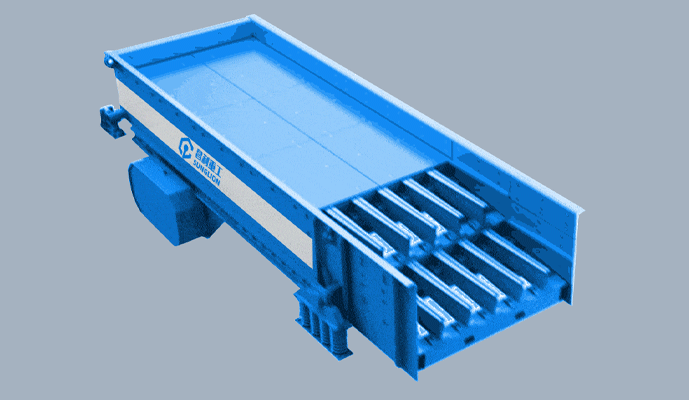

The vibrating feeder consists of feeding trough, exciter,spring support and transmission device, etc. The vibration source of feeding trough is exciter, which is composed of two eccentric shafts (active and passive) and gear pairs.The motor drives the active shaft through a triangular belt,and then gear on the active shaft meshes with the passive shaft. The active shafts and passive shafts rotate in opposite directions simultaneously, causing the trough to vibrate and continuously convey materials.

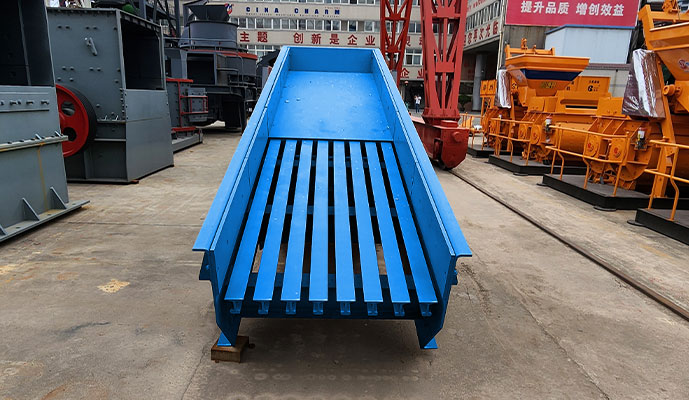

Photos

Technical Index

Model	Max. feeding particle size (mm)	Capacity (t/h)	No. of Motor	Motor power (kW)	Installation angle (%)	Trough size (mm)	Weight (t)	Overall dimension (L×W×H) (mm)
GZD180×80	300	30~80	4	2×1.5	0~10	1800×800	0.8	1907×964×890
GZD300×90	400	40~100	4	2×2.2	0~10	3000×900	3.6	3400×1020×900
ZSW380×96	500	120~210	6	11	0~10	3800×960	4.2	3880×1724×1180
ZSW420×110	650	180~400	6	15	0~10	4200×1100	4.8	4200×1804×1180
ZSW490×110	650	250~380	6	15	0~10	4900×1100	5.3	4976×1864×1180
ZSW590×110	650	280~400	6	22	0~10	5900×1100	6.13	5957×1648×1365
ZSW490×130	800	300~550	6	22	0~10	4900×1300	6.7	4976×2064×1180
ZSW600×130	800	340~600	6	30	0~10	6000×1300	7.8	6100×2004×1250
ZSW-600×160	1050	400~800	4	37	0~10	6000×1600	10.8	6400×3085×2395

Related case

Xinjiang Field Case Configuration

In Xinjiang, the vast territory, dispersed raw materials, and high transportation costs are unavoidable pain points in cobblestone sand production. Choosing the right mobile crushing and sand production line offers two core advantages that can directly help you "break through and become profitable."

Kyrgyzstan Field Case Configuration

The project has a capacity of 200 tons per hour and adopts a closed-loop process of "two-stage crushing + high-efficiency shaping + closed-circuit screening + deep cleaning".

Jilin Liaoyuan Field Case Configuration

n the field of manufactured sand, granite has always been hailed as the "king of hard rocks"—it boasts high strength, wear resistance, and excellent finished particle shape, making it a high-quality raw material for producing manufactured sand.

Lianyungang Field Case Configuration

Dry sand making towers, as a modern sand making solution, are based on a dry production mode that integrates high-efficiency sand making, particle shape optimization, stone powder control, gradation adjustment, and environmentally friendly dust removal.

Qinghai Field Case Configuration

Granite, as a representative of high-hardness rock, places higher demands on equipment performance and system configuration in its sand making process. Below is an analysis of the core configuration of a mature and stable 120-tph granite sand making production line.

Send Message

If you need our products please write down any questions, we will reply as soon as possible.

Related Products

PF Series Impact Crusher

The PF series impact crusher adopts a brand-new process and structural design, producing excellent particle size. It can crush various coarse, medium, and fine materials with a compressive strength not exceeding 350MPa, and the discharge particle size is adjustable.

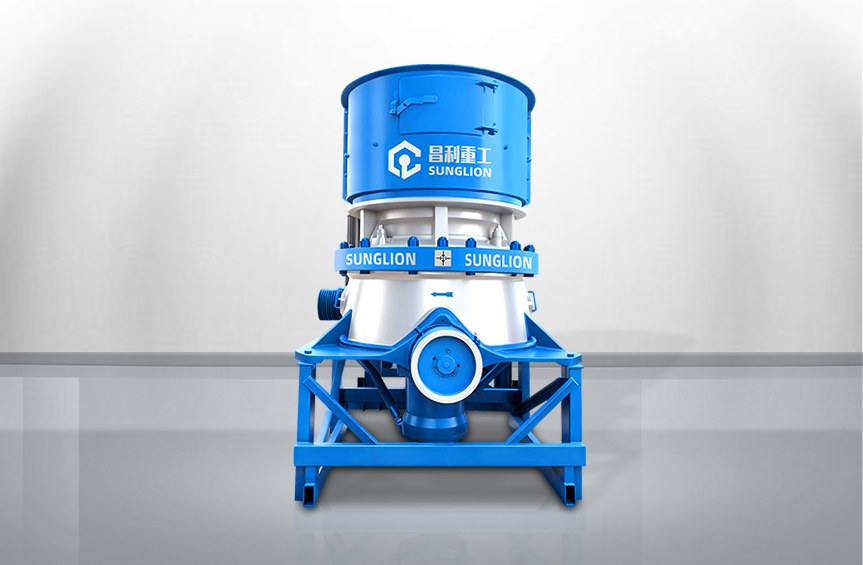

CH Series Single Cylinder Hydraulic Cone Crusher
