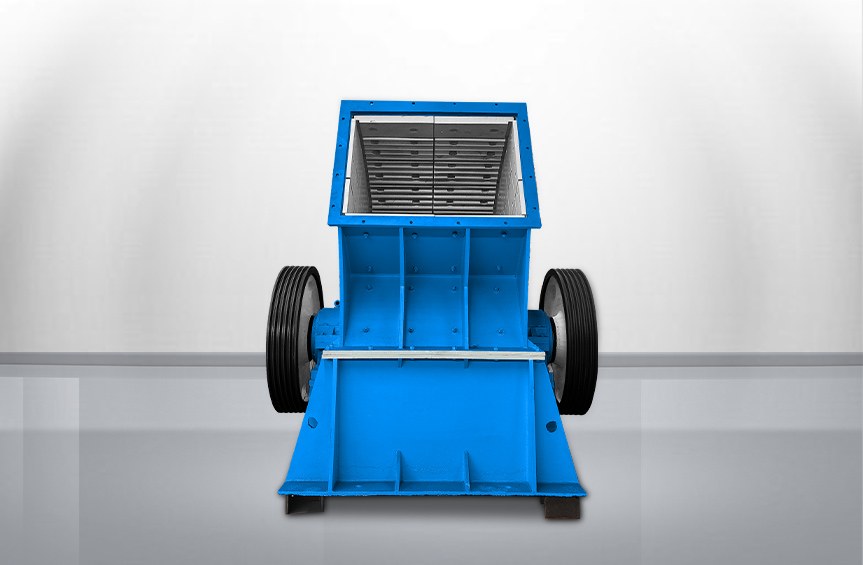

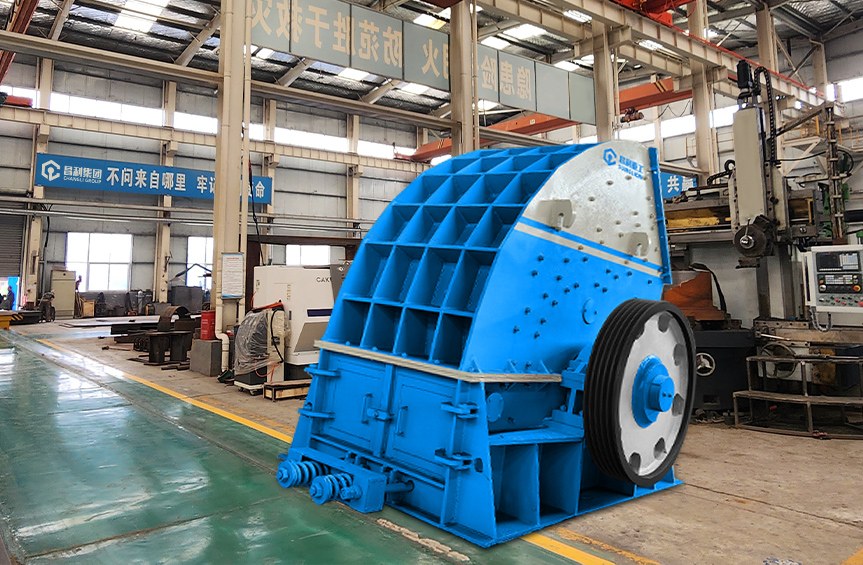

PC/PCZ Series Heavy Hammer Crusher

Send E-mail Inquiry Now

Maximum Feeding Size: 55cm Processing capacity: 50-585t/h

BLURB

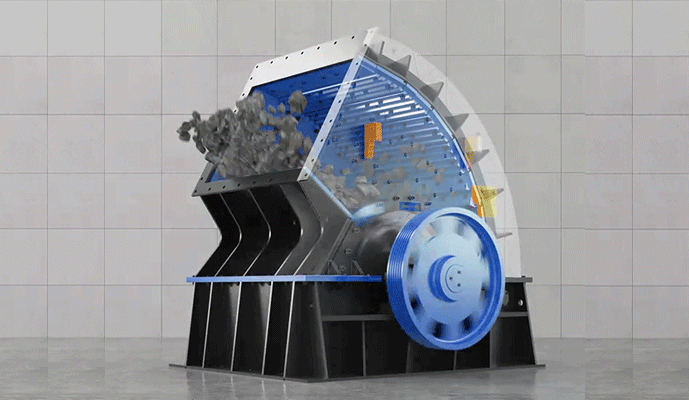

The PCZ series heavy hammer crusher uses an independent hammer head that can rotate around the hammer shaft. It has the advantages of large single hammer head weight, reasonable rotor speed, and large hammer head inertia, which can achieve the crushing effect of large feed particle size and small output particle size.

The finished product can be adjusted according to requirements, with various specifications including coarse, medium, and fine. It contains no flaky or smooth particles and features multiple angles and edges to ensure compressive strength. This crusher eliminates the primary crushing process of a jaw crusher, becoming a new type of crusher capable of crushing materials of various sizes in a single pass.

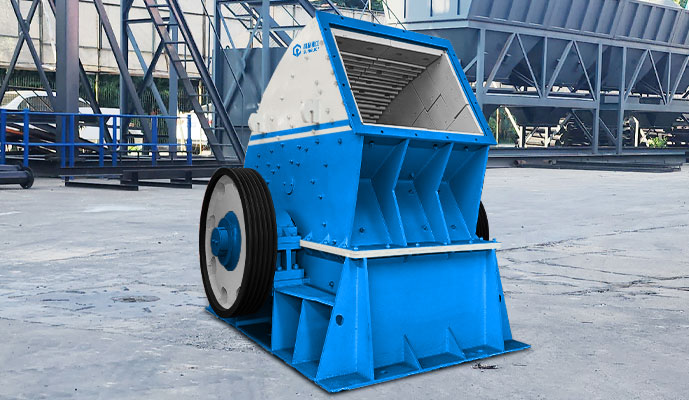

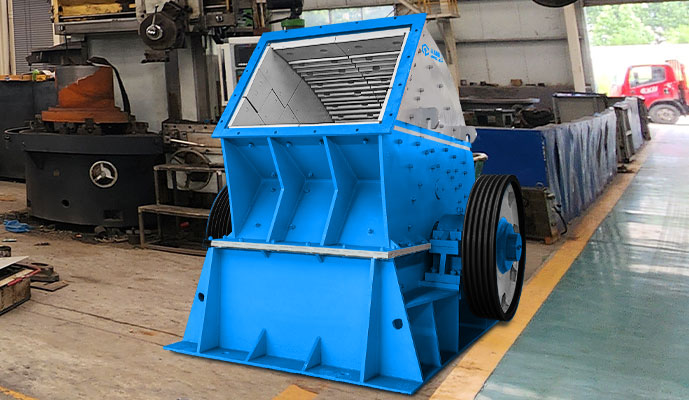

Photos

Technical Index

Model	Rotor diameter × length (mm)	Feeding opening size (mm)	Feeding size (mm)	Production capacity (t/h)	Motor power (kw)	Overall dimension (L×W×H)(mm)
PC-Z1310	1310×1050	890×1075	≤650	150-180	160	2950×2250×2495
PC-Z1512	1500×1160	1200×900	≤750	250-320	160×2	3260×2624×2750
PC-Z1513	1500×1350	1290×900	≤750	300-350	180×2	3260×2624×2750
PC-Z1615	1650×1452	1500×1200	≤1000	420-500	220×2	3667×2937×3436
PC-Z1818	1850×1800	1500×1280	≤1200	570-670	250×2	3680×3350×3515
PC-Z1620	1660×1900	2000×1200	≤1200	800-1000	400×2	3667×3200×3436
PC-Z1820	1800×1964	2000×1200	≤1200	1000-1200	450×2	3700×3270×3515
PC-Z2020	1920×2000	2010×1200	≤1500	1200-1600	450×2	4160×3920×3520
PC-Z2122	2130×2260	2240×1550	≤1500	1800-2200	1000	4990×4385×4360
PC-Z2225	2200×2485	2530×1560	≤1600	2000-3000	1250	4460×4565×4670
PC-Z3332	3300×3220	3300×1840	≤1800	4500-6000	(1250kw-6)×2	6710×6122×6340

Related case

Kyrgyzstan Field Case Configuration

The project has a capacity of 200 tons per hour and adopts a closed-loop process of "two-stage crushing + high-efficiency shaping + closed-circuit screening + deep cleaning".
