Maximum Feeding Size: 60cm Processing capacity: 70-850t/h
Blurb

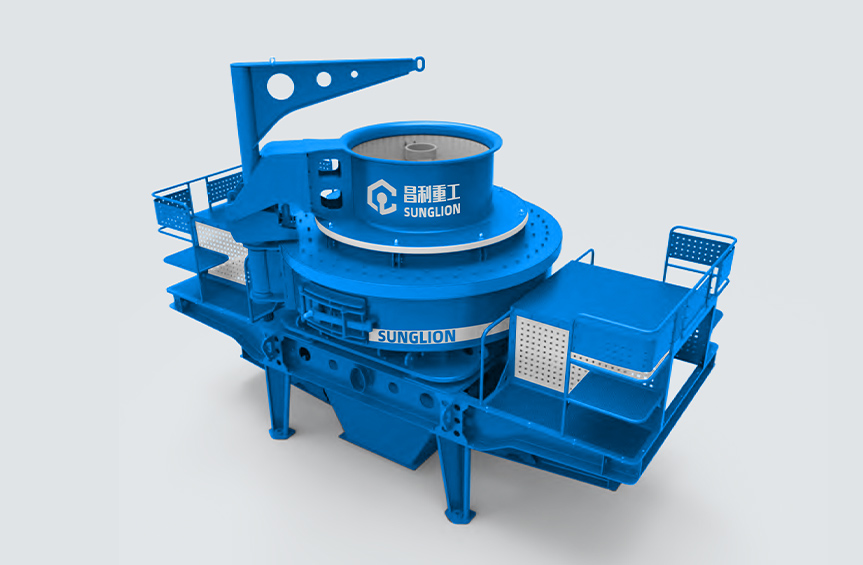

The CLV vertical shaft impact crusher can be used not only for making sand from hard rock and crushing ores, but also for treating solid waste. It is currently the ideal energy-saving, environmentally friendly, and efficient sand making and reshaping equipment on the market.
The CLV vertical shaft impact crusher incorporates new technological advancements, including a patented bearing cylinder design, a high-efficiency, low-cost crushing chamber, and a large-capacity frame. Furthermore, its overall functionality has been optimized, ensuring that the equipment's crushing efficiency, operating costs, and other performance aspects reach advanced levels both domestically and internationally.

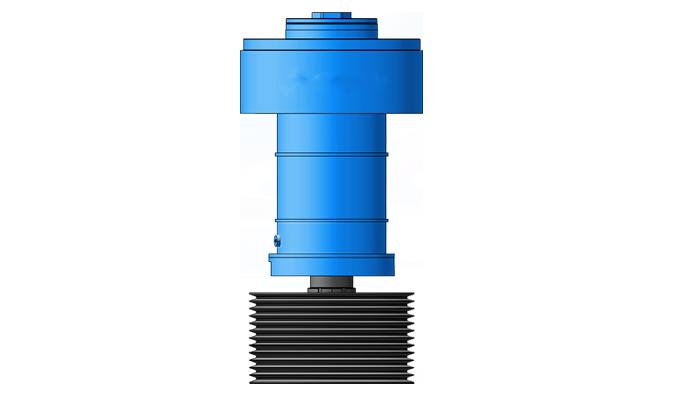

Design of the national patent bearing cylinder

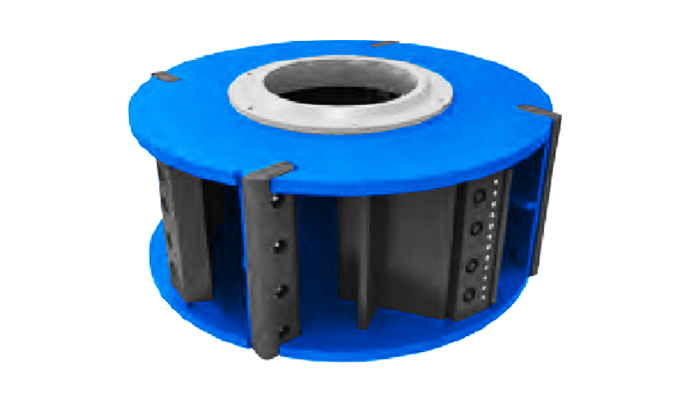

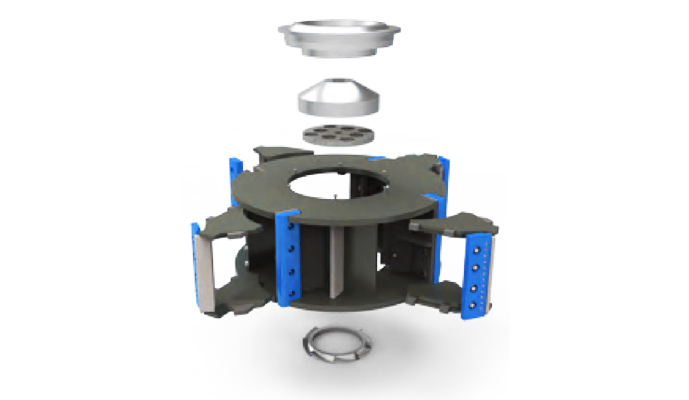

High efficiency four-port deep-cavity impeller
Wearable parts are more wear-resistant , reducing the cost of use.
|
Model |
Throughput (t/h) |
Max. feeding size |
Rotation speed |
Dual motor drive power |
Overall dimension |
||
|
Central feeding with circular |
Fully central feeding |
Soft material (mm) |
Hard material (mm) |
||||
|
cascade feeding |
|||||||
|
CLV7615 |
150~280 |
70~140 |
35 |
30 |
1710~1900 |
75×2 |
4100×2330×2300 |
|
CLV8522 |
240~380 |
120~200 |
40 |
35 |
1530~1700 |
110×2 |
4140×2500×2700 |
|
CLV9532 |
350~540 |
180~280 |
45 |
40 |
1380~1550 |
160×2 |
4560×2600×2900 |
|
CLV1145 |
500~640 |
250~640 |
50 |
45 |
1200~1390 |
220×2 |
5100×2790×3320 |
|
CLV1150 |
550~745 |
344~368 |
55 |
45 |
1000~1300 |
250×2 |
5500×2750×3950 |
|
CLV1263 |
650~850 |
454~486 |
60 |
50 |
900~1200 |
315×2 |
5700×2980×4190 |
