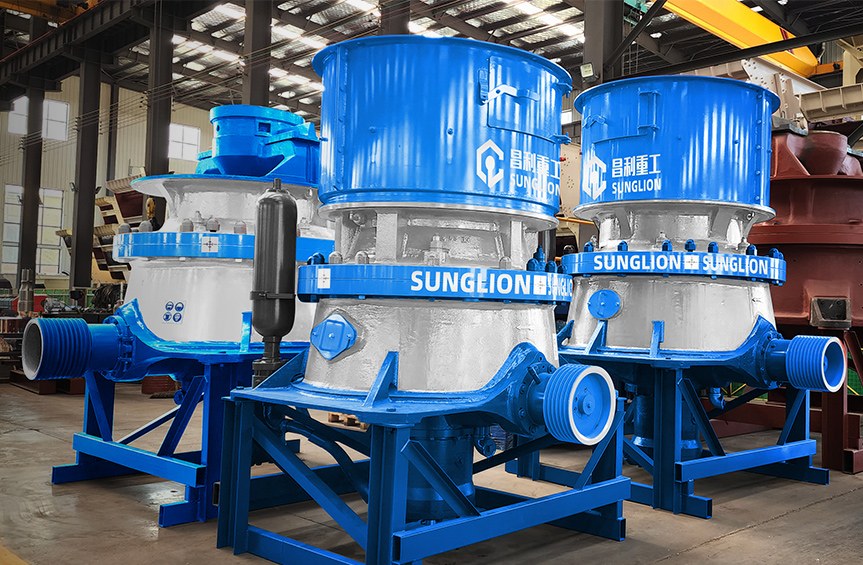

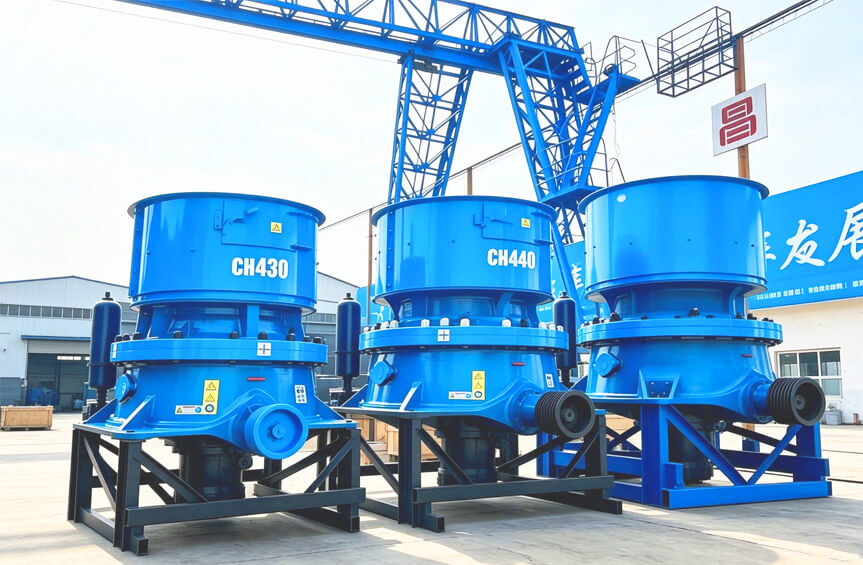

CH Series Single Cylinder Hydraulic Cone Crusher

Send E-mail Inquiry Now

Maximum Feeding Size: 460cm Processing capacity: 800t/h

BLURB

The CH series single-cylinder hydraulic cone crusher adopts European technical standards and assembly processes, with key components imported from Europe and the United States. The CH series cone crusher is widely used in medium and fine crushing operations within crushing systems in mines and engineering projects.

The CH series single-cylinder hydraulic cone crusher was developed based on the product technology and design concepts of internationally renowned mining machinery companies, with optimizations and improvements made to local technical details to achieve import substitution. The machine still uses the technical standards and assembly processes of European companies, while key components are imported from Europe and the United States.

Features

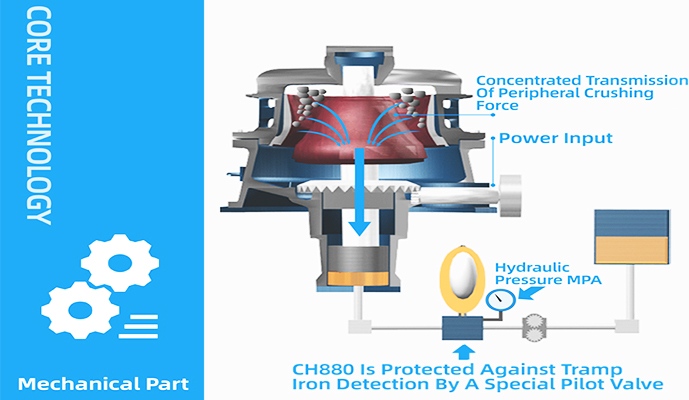

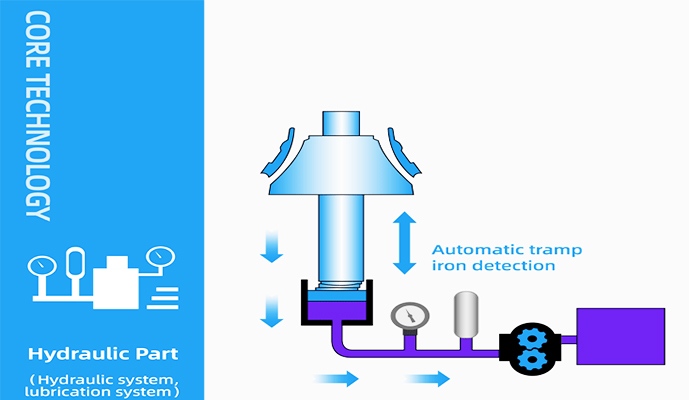

Multi-layer dust-proof measures，Long-lasting production capacity，Adjustable multi-cavity type，Hydraulic support design
Modular Box Design，Multiple Automatic Control Functions，Key components are imported，Filtration system operates independently

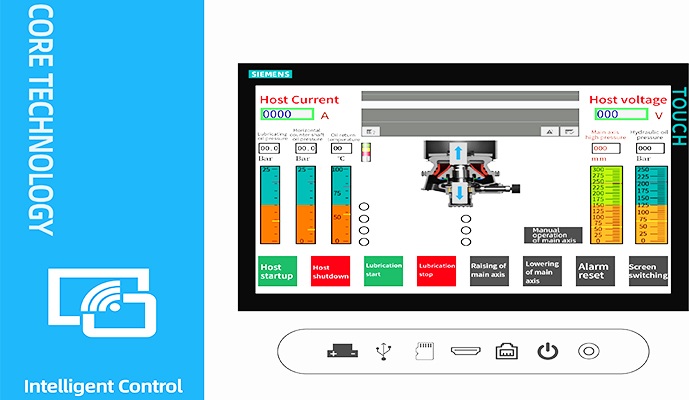

Touch Screen Control System Interface，Advanced Control System，Visual Intelligent Operation

Technical Inde

Model	Power (kW)	Specification	Max. Feeding size (mm)	Nominal capacity in t/h with crusher running at CSS (mm)
CH420	90			6	8	10	13	16	19	22	25	32	38	44	51
		EC	135			45-55	50-100	55-105	60-115	60-120	65-130	75-145
		C	90			45-60	45-405	50-110	55-120	55-125	60-135	70-80
		M	65		35-50	45-85	40-90	45-90	50-70
		MF	50	35-40	40-75	45-80	45-80	45-60
		F	38	30-60	30-60	30-65	35-55	40-45
		EF	28	30-40 with 80% finer than 4.5-5.5mm
CH430	160			6	8	10	13	16	19	22	25	32	38	44	51
		EC	190				70-125	75-170	80-185	85-196	90-210	105-240	115-240
		C	145			75-85	65-150	70-165	75-175	80-185	85-200	100-225	110-170
		MC	115			55-65	60-160	65-175	70-785	75-200	80-210	96-165
		M	90		60-75	65-100	70-150	75-165	80-175	85-185	90-175	105-120
		MF	75		60-70	65-120	70-130	75-145	80-145	85-130	90-105
		F	50	50-90	50-95	55-100	60-110	65-120	70-120	70-110	75-90
		EF	35	70-90 with 80% finer than 5-5.6mm
CH440	250			6	8	10	13	16	19	22	25	32	38	44	51
		EC	215					114-200	122-276	131-294	139-313	159-357	175-395	192-384
		C	175				101	109-218	117-292	125-312	133-332	151-378	167-335	183-229
		MC	140				97-122	105-262	113-282	120-301	128-320	146-328	161-242
		M	110				117-187	126-278	136-298	145-318	154-339	176-281	194
		MF	85			114	124-227	134-245	144-263	153-281	163-299	186-248
		F	70		90-135	96-176	104-191	112-206	120-221	129-236	137-251	156-208
		EF	38	100-125 with 80% finer than 6-7.5mm
CH660	315			6	8	10	13	16	19	22	25	32	38	44	51
		EC	275					177	190-338	203-436	216-464	246-547	272-605	298-662	328-511
		C	215					171-190	184-367	196-480	209-501	238-582	263-643	288-512	317-353
		MC	175					162-253	174-426	186-455	198-484	226-502	249-499	273-364
		M	135					197-295	211-440	226-470	240-500	274-502	302-403
		MF	115				192	207-369	143-396	273-423	252-450	287-451	318-363
		F	85				195-304	210-328	252-352	241-376	256-400	292-401	323
		EF	65				211-293	227-316	244-298	161-290
CH870	500			6	8	10	13	16	19	22	25	32	38	44	51
		EC	300								480-640	547-1277	605-1411	662-1546	730-1702
		C	240								540-772	616-1232	681-1362	746-1492	821-1643
		MC	195							541	576-864	657-1321	726-1361	795-1490	876-1642
		M	155							552-613	587-1043	669-1189	739-1314	810-1440	892-1586
		MF	100						514	549-933	584-993	666-1132	736-1251	806-1370	888-1420
		F	90					531	570-832	609-888	648-945	739-985	816-885
		EF	80			364-420	395-532	426-574	458-616	489-658	520-700	593-798	655-882	718-883	790
CH880	600			6	8	10	13	16	19	22	25	32	38	44	51
		EC	460								480-640	547-1277	605-1411	662-1546	730-1702
		C	340								540-772	616-1232	681-1362	746-1492	821-1643
		MC	250							541	576-864	657-1321	726-1361	795-1490	876-1642
		M	180							552-613	587-1043	669-1189	739-1314	810-1440	892-1586
		MF	120						514	549-933	584-993	666-1132	736-1251	806-1370	888-1420
		F	80					531	570-832	609-888	648-945	739-985	816-885
		EF	50			364-420	395-532	426-574	458-616	489-658	520-700	593-798	655-882	718-883	790
