Maximum Feeding Size: 240cm Processing capacity: 8-160t/h
Blurb

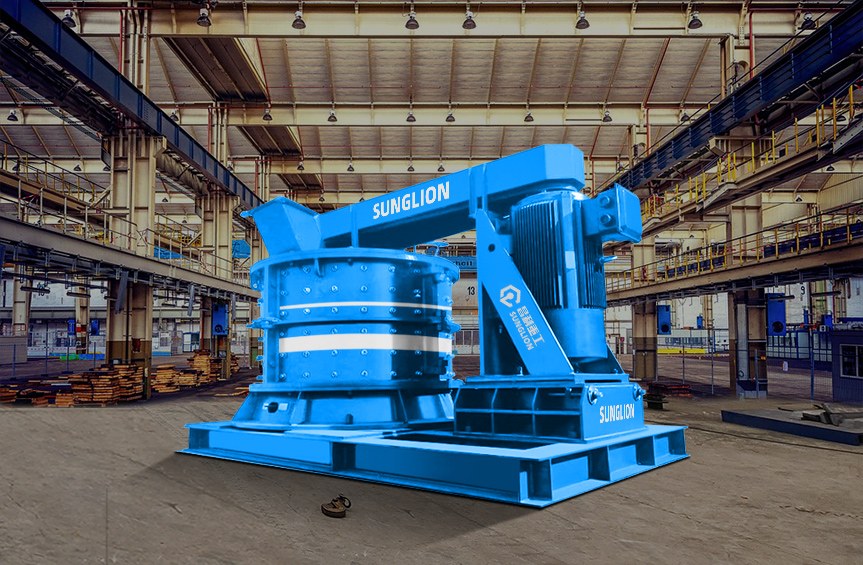

The compound sand making machine, also known as the composite sand crusher, is a fine crushing equipment. It is mainly used for crushing materials with medium or lower hardness. It not only has a strong ability to crush soft rock, but also produces good particle size of finished products
The compound sand making machine is a new product designed by our company by combining domestic and foreign fine crushing technologies. It has significant performance advantages and is suitable for crushing and processing materials with a compressive strength of less than 140MPa. It is widely used in mining, metallurgy, wear-resistant materials, cement, coal, glass, ceramics, power and other industries.
|
Model |
Feeding size(mm) |
Discharging size(mm) |
Main axis rotation(r/min) |
Capacity (t/h) |
Power (kW) |
Overall dimension(L×W×H)(mm) |
|
PFL-750lll |
<100 |
<3 |
800~1350 |
8~20 |
45 |
2370×1150×1300 |
|
PFL-1000lll |
<120 |
<3 |
650~980 |
15~30 |
55 |
2600×1420×1520 |
|
PFL-1250lll |
<150 |
<3 |
510~770 |
35~45 |
90 |
3070×1690×1660 |
|
PFL-1500lll |
<180 |
<3 |
430~640 |
50~70 |
132 |
3390×2050×2030 |
|
PFL-1750lll |
<200 |
<3 |
420~540 |
70~100 |
160 |
3820×2360×2080 |
|
PFL-2000lll |
<220 |
<3 |
360~500 |
90~20 |
200 |
4080×2610×2180 |
|
PFL-2300lll |
<240 |
<3 |
330~450 |
120~160 |
250 |
4472×2930×2554 |
