Mobile Concrete Batching Plant

Send E-mail Inquiry Now

Productivity: 25-75 M3/h Mixing Host: JS500-JS1500

BLURB

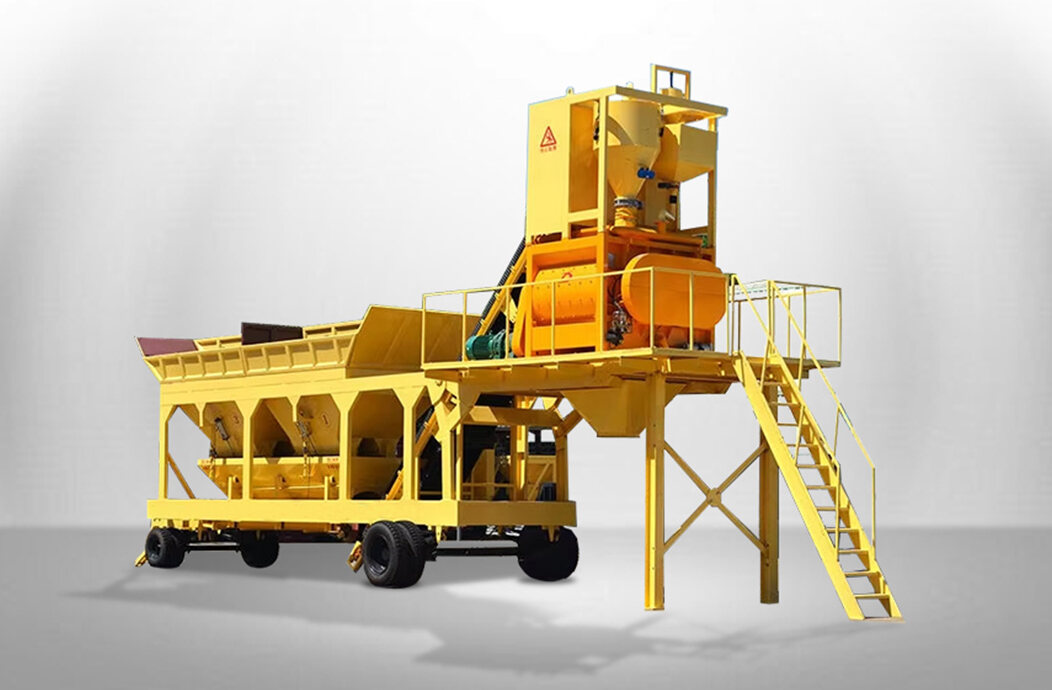

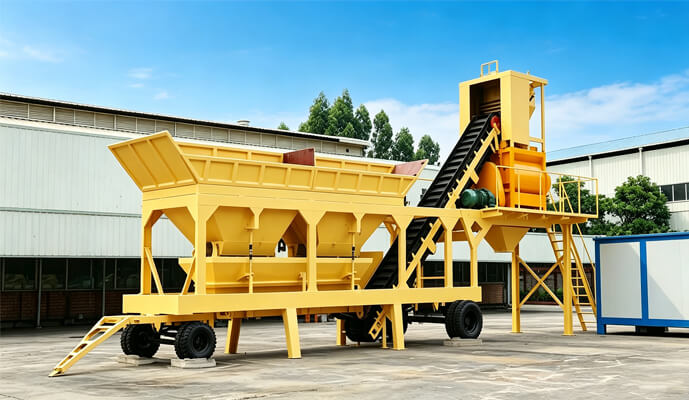

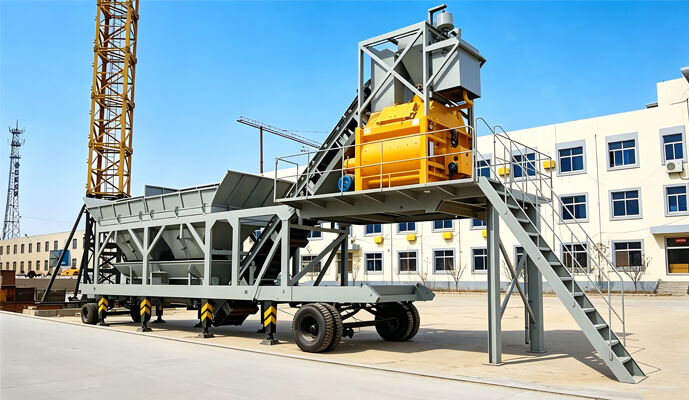

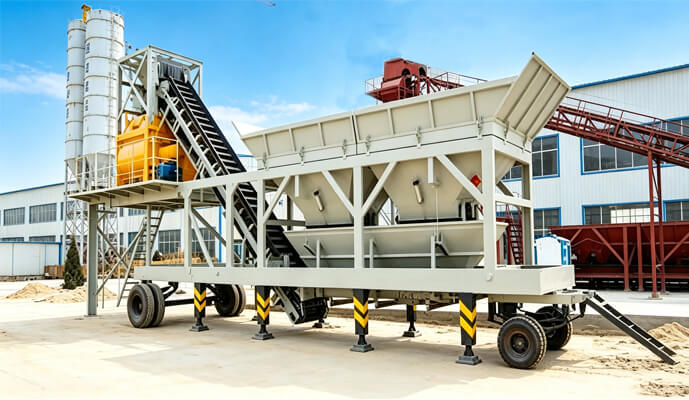

The mobile concrete batching plant(also known as a trailer-mounted batching plant) is a complete system that integrates all core units of the entire concrete production process, including batching, weighing, conveying, mixing, and control. All of these units are mounted onto one or more mobile chassis. Capable of rapid relocation simply by means of a towing vehicle, it is aptly described as a "mobile concrete factory" within the engineering sector.

The mobile concrete mixing plant integrates batching, mixing, and control into a single unit; it is towable for site-to-site relocation, ensuring convenient transfer. Featuring a modular, integrated design, it occupies a minimal footprint, offers simple operation, and saves on both construction and dismantling costs.

Application areas: Widely used in large and medium-sized prefabricated component factories, as well as industrial and civil construction projects such as highways, bridges, water conservancy, and docks.

Photos

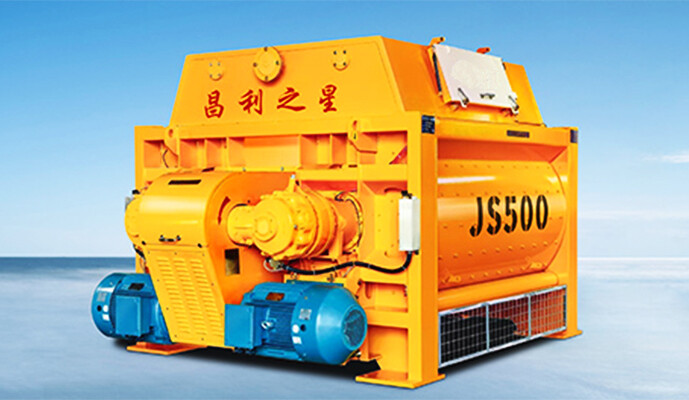

Mixing System: Features a twin-shaft forced mixer; high-wear-resistant alloy mixing arms; and excellent sealing protection.

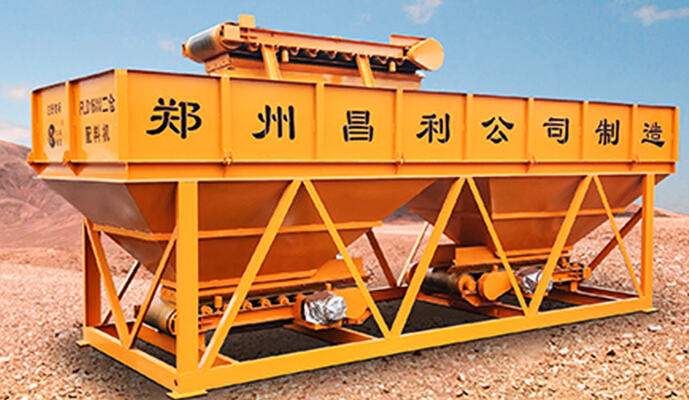

Batching System: Features include: a batching machine; electronic weighing of individual and cumulative materials; wired remote control operation.

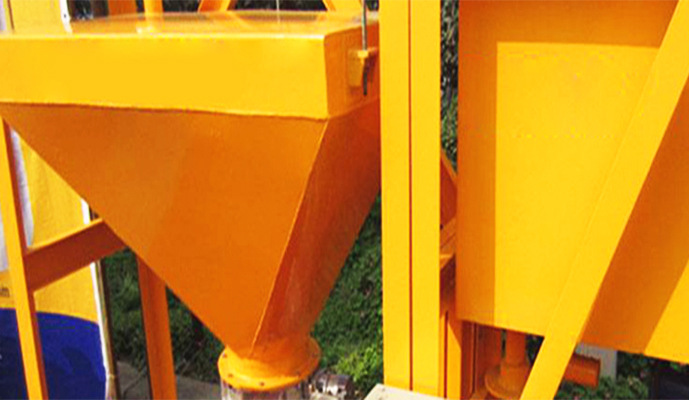

Metering System: The core components all utilize electronic scales for metering; ensuring high batching accuracy and precise measurement.

Technical Index

Model	YHZS25	YHZS35	YHZS50	YHZS75
Rated Productivity（m³/h）	25	35	50	75
Concrete Mixer	JS500	JS750	JS1000	JS1500
Aggregate Bin Size（m³）	4x3.2	2x4.6	4x5.6	2x11.3
Trailer Speed(km/h)	15	15	15	15
Total Power(kw)	63.5	83	106	130

Related case

Xinjiang Field Case Configuration

In Xinjiang, the vast territory, dispersed raw materials, and high transportation costs are unavoidable pain points in cobblestone sand production. Choosing the right mobile crushing and sand production line offers two core advantages that can directly help you "break through and become profitable."

Kyrgyzstan Field Case Configuration

The project has a capacity of 200 tons per hour and adopts a closed-loop process of "two-stage crushing + high-efficiency shaping + closed-circuit screening + deep cleaning".

Jilin Liaoyuan Field Case Configuration

n the field of manufactured sand, granite has always been hailed as the "king of hard rocks"—it boasts high strength, wear resistance, and excellent finished particle shape, making it a high-quality raw material for producing manufactured sand.

Lianyungang Field Case Configuration

Dry sand making towers, as a modern sand making solution, are based on a dry production mode that integrates high-efficiency sand making, particle shape optimization, stone powder control, gradation adjustment, and environmentally friendly dust removal.

Qinghai Field Case Configuration

Granite, as a representative of high-hardness rock, places higher demands on equipment performance and system configuration in its sand making process. Below is an analysis of the core configuration of a mature and stable 120-tph granite sand making production line.

Send Message

If you need our products please write down any questions, we will reply as soon as possible.

Related Products

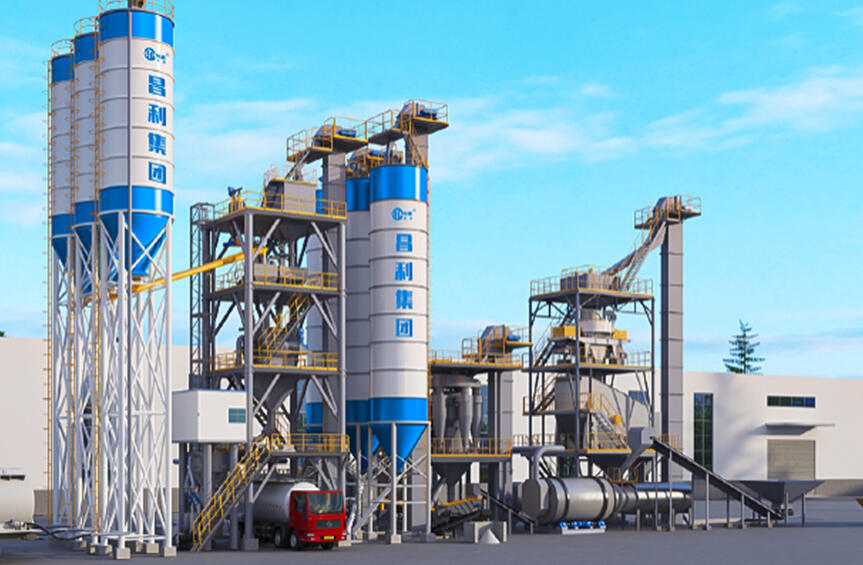

Dry Mortar Plant

Finished sand is loaded into storage silos, powder is pumped into silos by bulk tank trucks, and additives are added to silos manually.

LX Series Sand Washing and Dewatering Machine

The Sand dewatering machine consists of two parts: a wheel-type sand washing machine and a fine sand recovery unit. The configuration of the fine sand recovery unit depends on the volume of water to be treated and the concentration of the sand-water mixture, thus determining the appropriate model and quantity of the separator, mud pump, and dewatering screen.

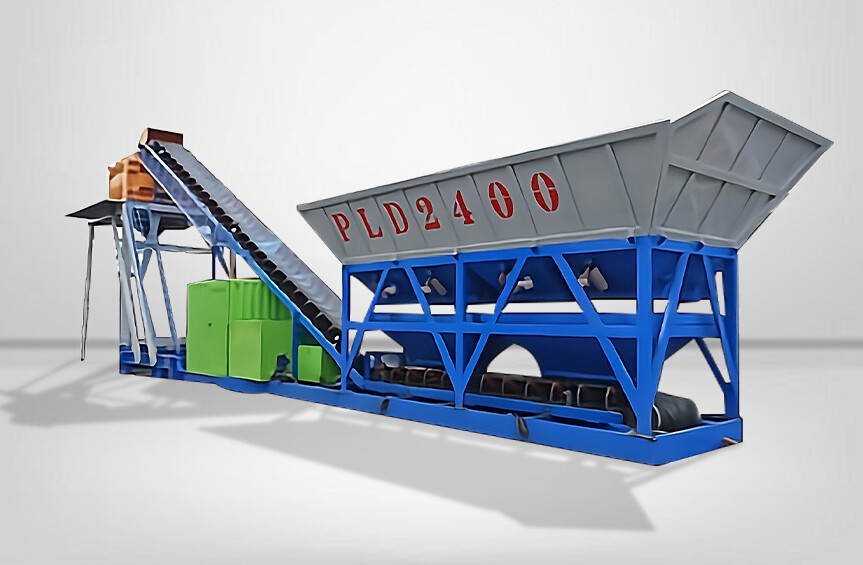

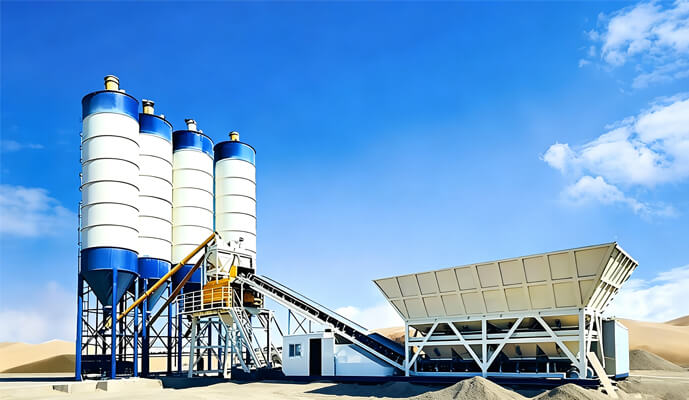

Free Foundation Concrete Batching Plant
