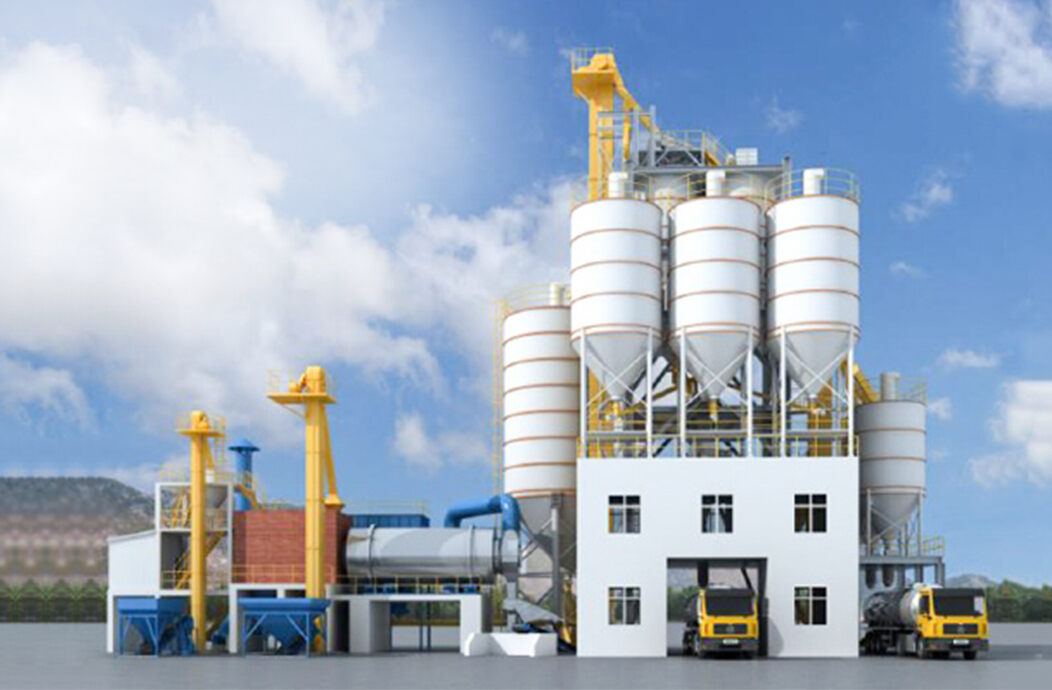

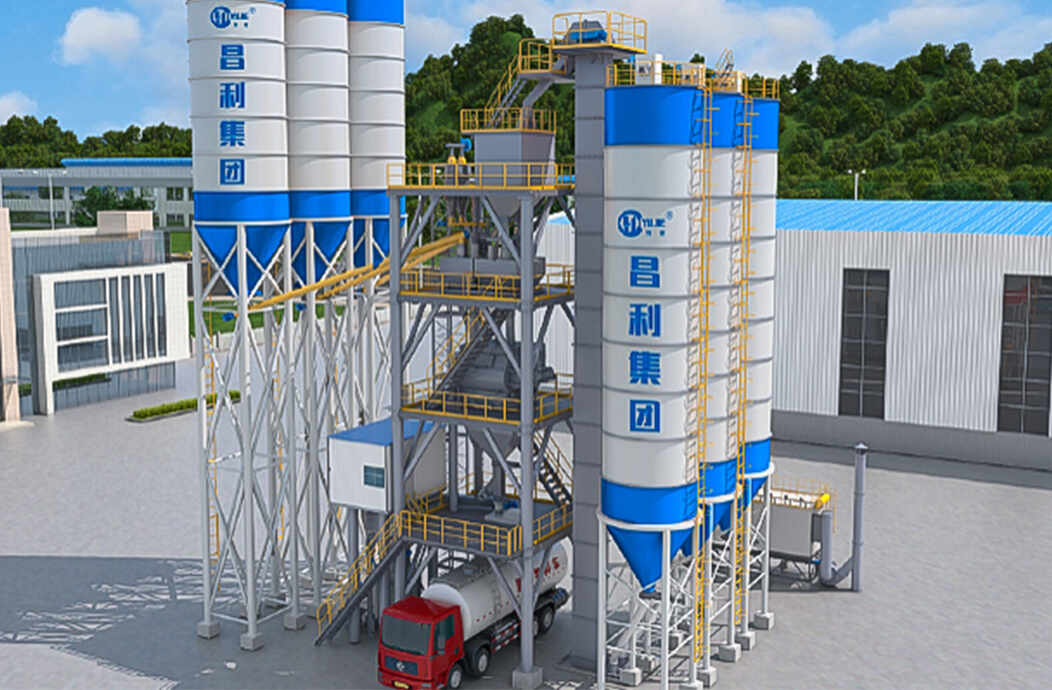

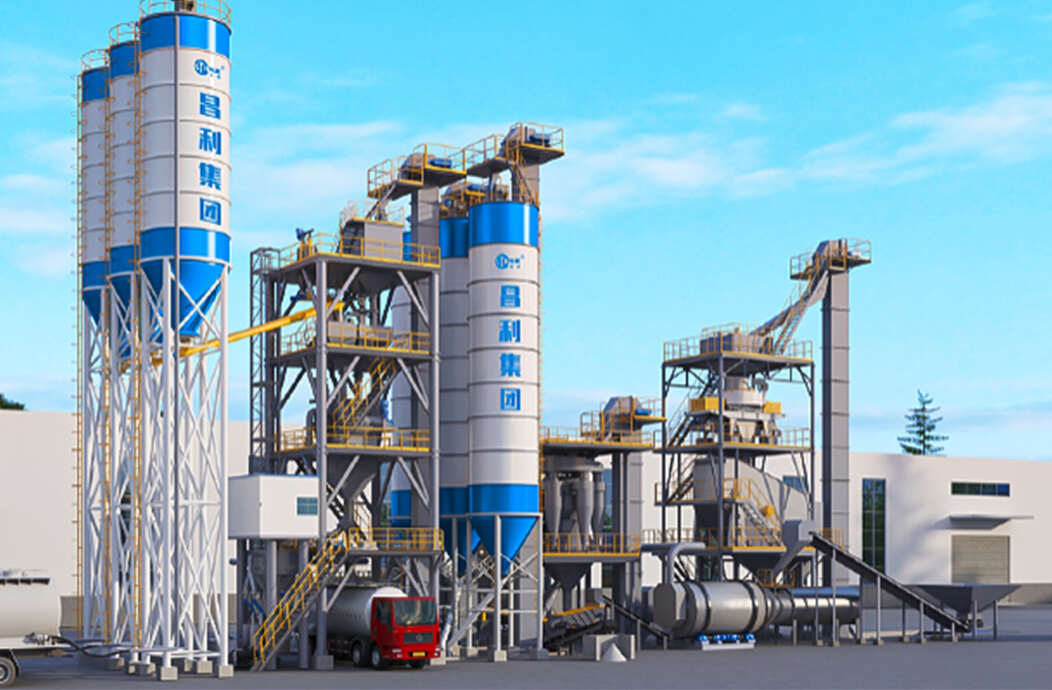

Dry Mortar Plant

Send E-mail Inquiry Now

Annual Production Volume: 100000-800000 Ton

Device Style: Tower-style, stepped-style, workshop style, multi-functional integrated type

BLURB

Finished sand is loaded into storage silos, powder is pumped into silos by bulk tank trucks, and additives are added to silos manually. Materials from each silo are unloaded into metering hoppers via screw conveyors for metering. After metering, the materials are then conveyed by screw conveyors to bucket elevators, lifted to intermediate storage hoppers, and then unloaded into mixers for mixing. Finished materials are discharged from the discharge port and packaged by packaging machines or sent to finished product silos for storage.

Photos

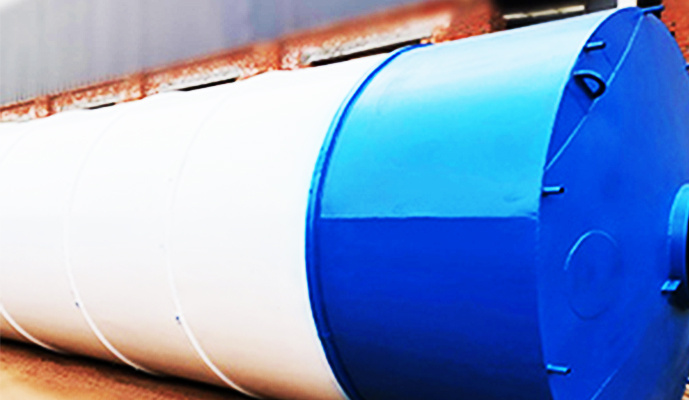

Finished Goods Warehouse: Used for storing cement, fly ash, etc., using pump truck pneumatic feeding. The warehouse roof is equipped with a dust collector to protect the working environment.

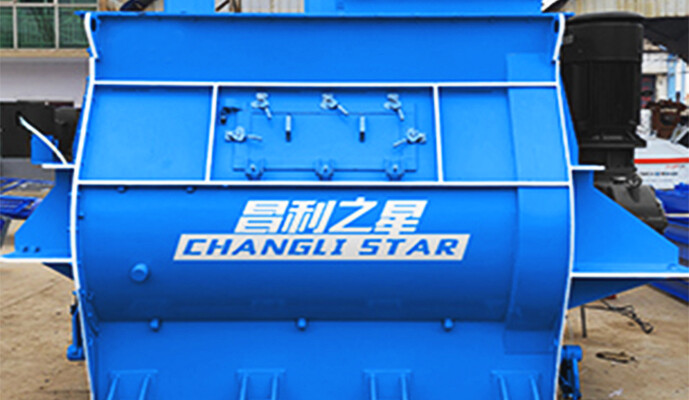

Mixing and Mixing System: The main unit of the equipment adopts an energy-saving dual-shaft blade-type zero-gravity mixer with automatic feeding.

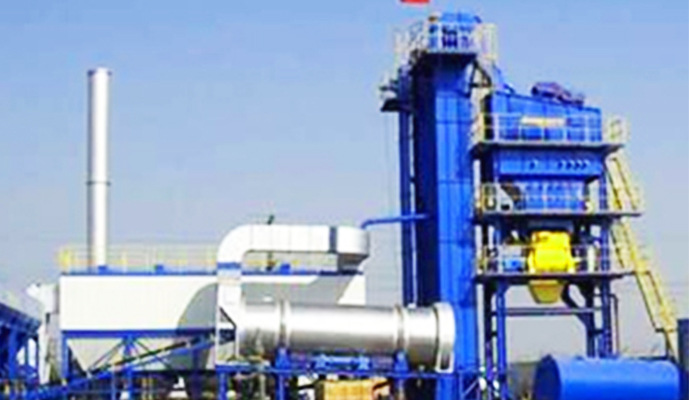

Environmentally Friendly Dust Collection System: This system is used to recover dust generated during the production of dry-mixed mortar, which is beneficial to environmental protection. The dust collector is reliable and highly efficient.

Technical Index

Model	100,000 tons per year	200,000 tons per year	300,000 tons per year	500,000 tons per year	600,000 tons per year	800,000 tons per year
Theoretical productivity(t/h)	20~28	30~45	65~75	95~120	130~150	160~195
Host model	CL-4000	CL-6000	CL-10000	CL-6000+CL-10000	CL-10000×2	CL-10000×2+CL-6000
Host power(kw)	30	55	75	130	150	205
Host volume ratio	70%
Production method	continuous
Covered area(㎡)	100~500
Equipment personnel	4~15 people

Related case

Xinjiang Field Case Configuration

In Xinjiang, the vast territory, dispersed raw materials, and high transportation costs are unavoidable pain points in cobblestone sand production. Choosing the right mobile crushing and sand production line offers two core advantages that can directly help you "break through and become profitable."

Kyrgyzstan Field Case Configuration

The project has a capacity of 200 tons per hour and adopts a closed-loop process of "two-stage crushing + high-efficiency shaping + closed-circuit screening + deep cleaning".

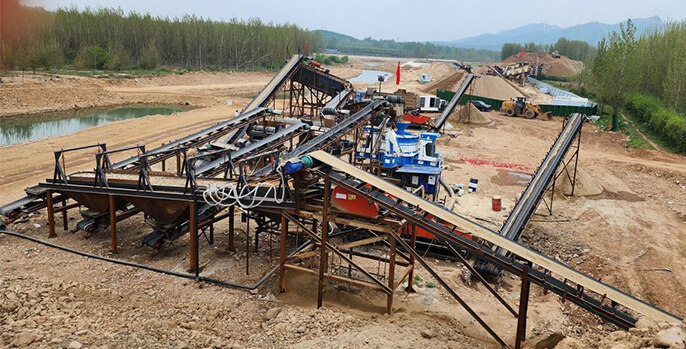

Jilin Liaoyuan Field Case Configuration

n the field of manufactured sand, granite has always been hailed as the "king of hard rocks"—it boasts high strength, wear resistance, and excellent finished particle shape, making it a high-quality raw material for producing manufactured sand.

Lianyungang Field Case Configuration

Dry sand making towers, as a modern sand making solution, are based on a dry production mode that integrates high-efficiency sand making, particle shape optimization, stone powder control, gradation adjustment, and environmentally friendly dust removal.

Qinghai Field Case Configuration

Granite, as a representative of high-hardness rock, places higher demands on equipment performance and system configuration in its sand making process. Below is an analysis of the core configuration of a mature and stable 120-tph granite sand making production line.

Send Message

If you need our products please write down any questions, we will reply as soon as possible.

Related Products

Semi-underground Stepped Sand Making Plant

The STSL series semi-underground stepped sand making plant is a relatively simple sand making plant. It installs the feeding and conveying system and the crushing and sand making system underground, and uses an enclosure structure to enclose the surface equipment to reduce noise and dust pollution.

LX Series Sand Washing and Dewatering Machine

The Sand dewatering machine consists of two parts: a wheel-type sand washing machine and a fine sand recovery unit. The configuration of the fine sand recovery unit depends on the volume of water to be treated and the concentration of the sand-water mixture, thus determining the appropriate model and quantity of the separator, mud pump, and dewatering screen.

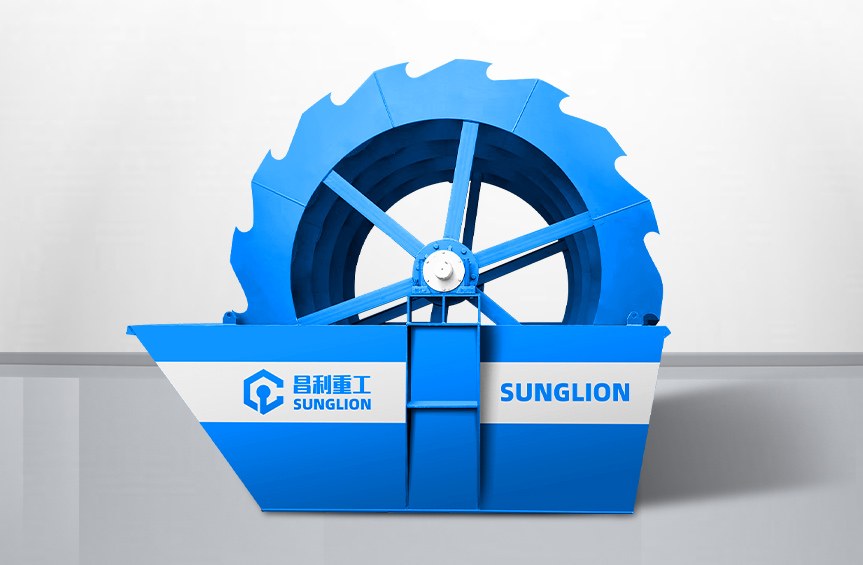

Wheel Bucket Sand Washing Machine
